SC12SUU Linear Slide Block

Name: SC12SUU Linear Slide Block
Brand: Caxtool
SKU: MBNS03189
Price: 5.32 EUR
Availability: InStock

5.32 €

(4.19 € + 27% VAT)

Article No.:

MBNS03189

Delivery time:

2-4 working days

Downloadable 3d model:

Type:

SC..SUU

Inner diameter:

12mm

Main stock

20 pcs

We deliver our products within 2-4 working days!

Product description

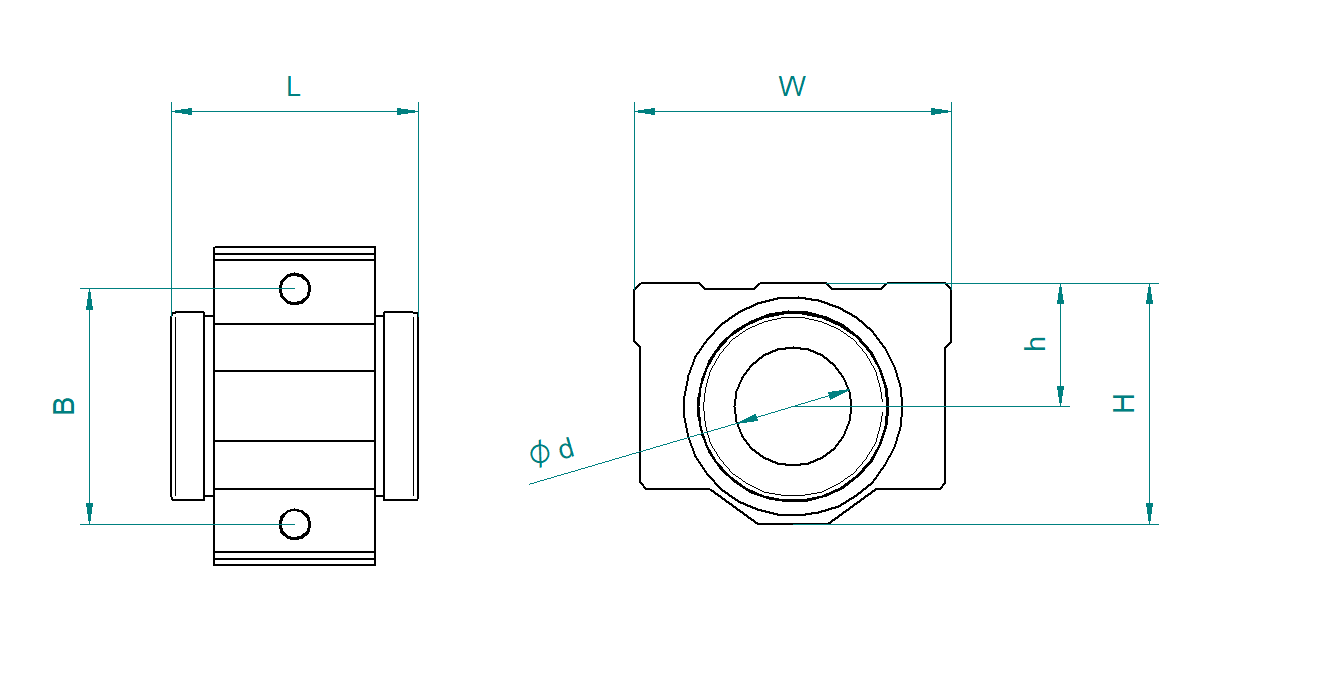

Specification:
Type: SC-S - closed housing
d - Inner diameter: 12 mm
h - Shaft height: 15 mm
H - Total height: 028 mm
W - Total width: 042 mm
L - Total length: 030 mm
B - Hole pitch: 030.5 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 00590N
C - Dynamic load capacity: 410N
Bush type: 1 x LM 12 UU
Applicability temperature: -20 / 80°C
Unit type: Unit with two arresting holes, single ball bushing
Dimensional standard: JIS - Japanese standard
