LM4 linear bearing

Name: LM4 linear bearing
Brand: Caxtool
SKU: MBNS03098
Price: 4.17 EUR
Availability: InStock

4.17 €

(3.29 € + 27% VAT)

Article No.:

MBNS03098

Delivery time:

2-4 working days

Downloadable 3d model:

Type:

LM..

Inner diameter:

4mm

Main stock

22 pcs

We deliver our products within 2-4 working days!

Product description

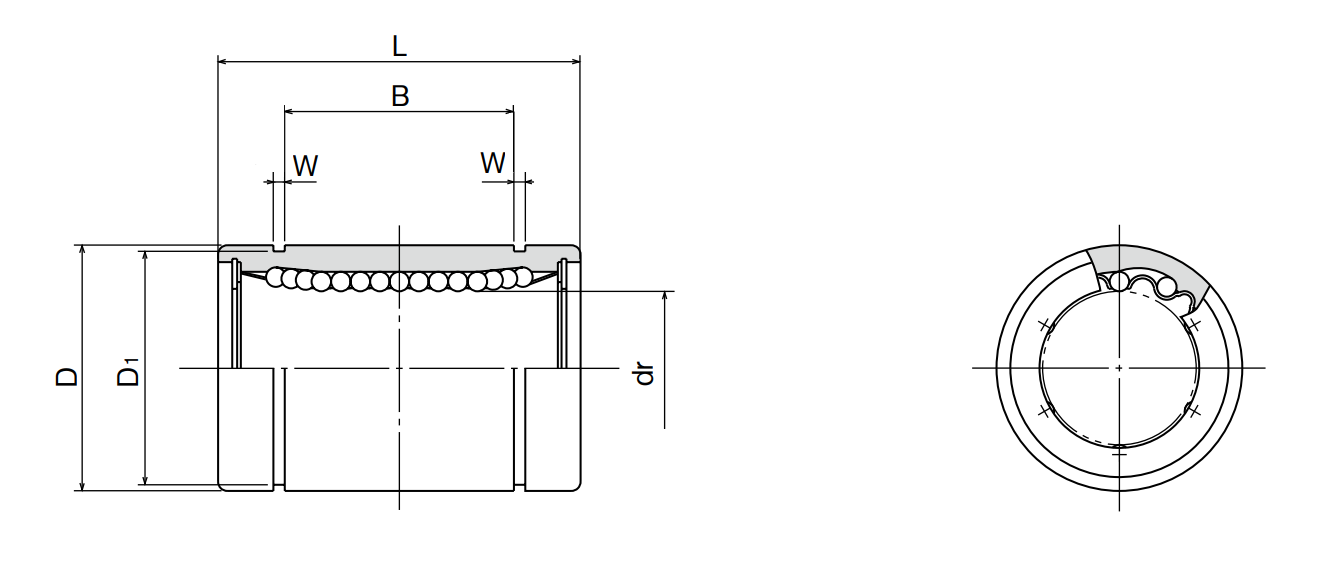

Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 004 mm
Inner diameter tolerance: 0 / -0.008 mm
D - Outer diameter: 008 mm
Outer diameter tolerance: 0 / -0.009 mm
L - Total length: 012 mm
Total length tolerance: 0 / -0.12 mm
W - Insertion width: - mm
B - Insertion distance: - mm
D1 - Insertion diameter: - mm
Preload: Standard
Layout: Standard
Eccentricity: 0.008 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00127 N
Dynamic load: 00088 N
Weight: 0.0019kg
