LME5UU linear bearing

LME5UU linear bearing
4.70 €

(3.70 € + 27% VAT)
Article No.:
MBNS03111
Downloadable 3d model:

Type:
LME..UU
Inner diameter:
5mm
Main stock
0 pcs
We deliver our products within 2-4 working days!
Product description

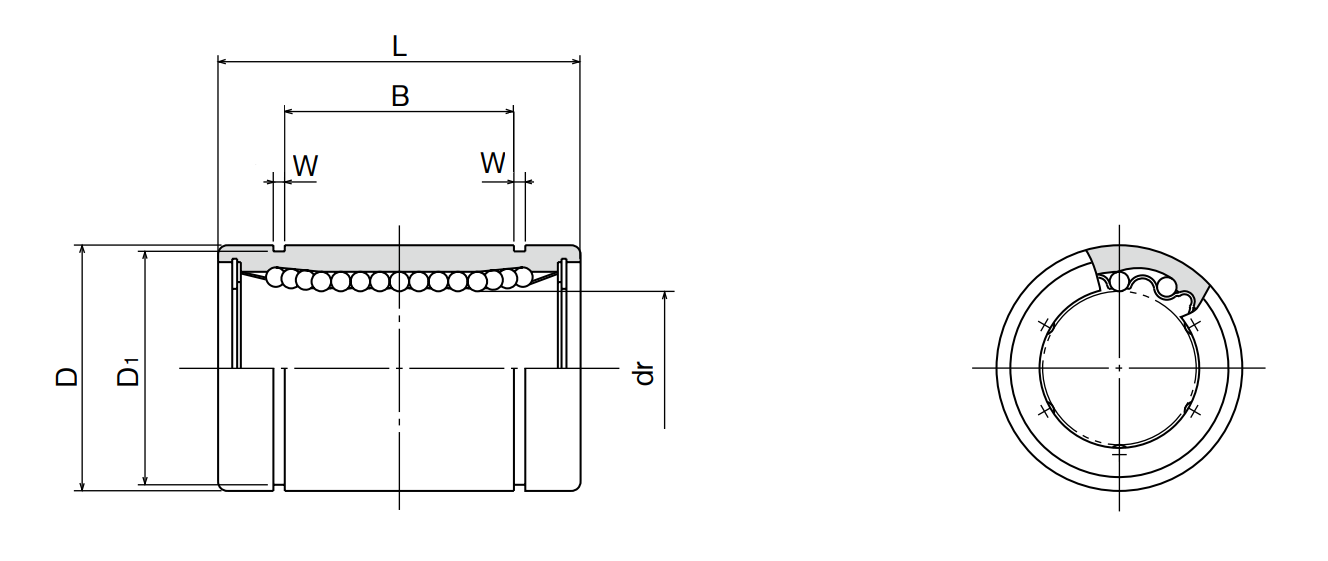

Specification:
Type: LME
Flange type: Without flange
Size standard: According to ISO - European standard
Length: Simple - Standard
d - Inner diameter: 005 mm
Inner diameter tolerance: + 0.008 / 0 mm
D - Outer diameter: 012 mm
Outer diameter tolerance: 0 / -0.008 mm
L - Total length: 022 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.1 mm
B - Insertion distance: 12.3 mm
D1 - Insertion diameter: 11.5 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00265 N
Dynamic load: 00206 N
Weight: 0.011kg
