SC8SUU Linear Slide Block

Product description

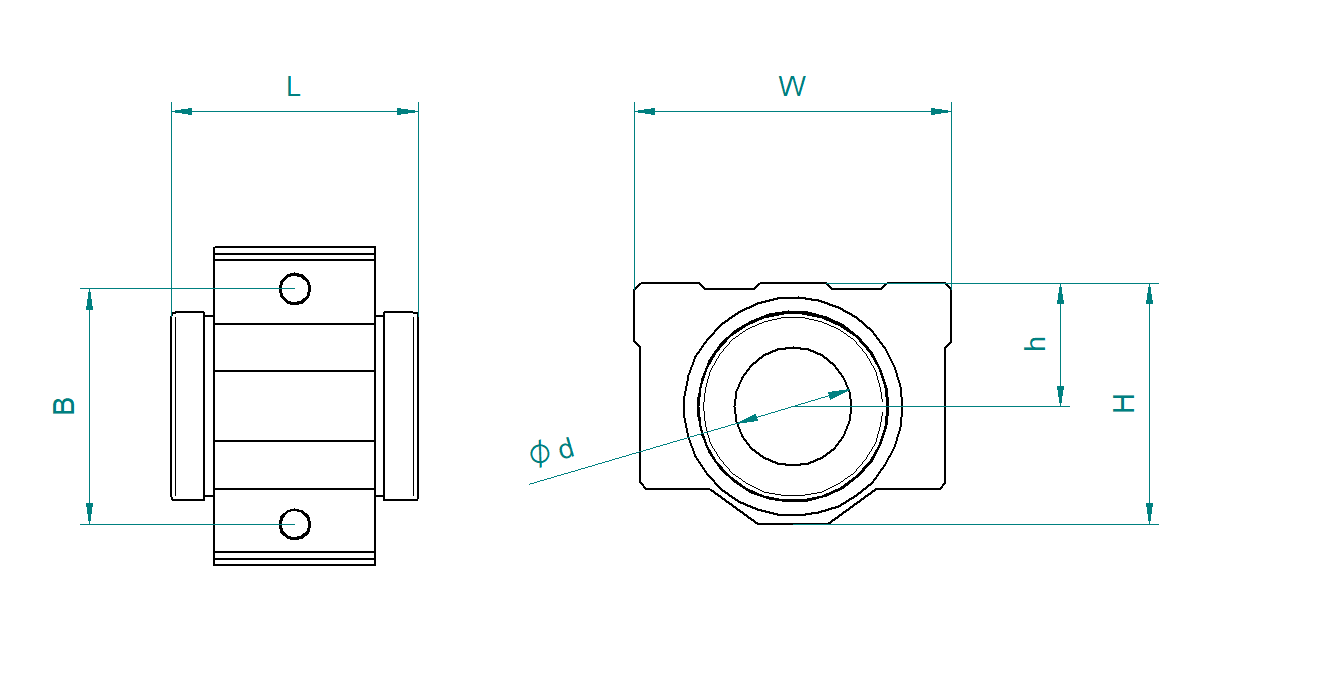

Specification:
Type: SC-S - closed housing
d - Inner diameter: 08 mm
h - Shaft height: 11 mm
H - Total height: 022 mm
W - Total width: 034 mm
L - Total length: 024 mm
B - Hole pitch: 024 mm
Through fixing screw: M3
Fixing thread from below: M4X8
C0 - Static load capacity: 00400N
C - Dynamic load capacity: 260N
Bush type: 1 x LM 8 UU
Applicability temperature: -20 / 80°C
Unit type: Unit with two arresting holes, single ball bushing
Size standard: JIS - Japanese standard
