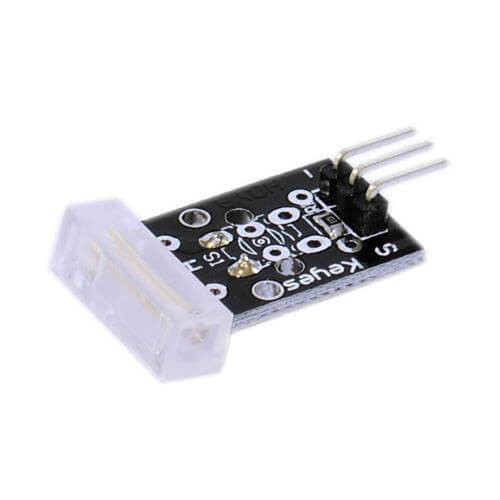

The Knock Sensor Module

Both knock sensor module and digital interface 13 carries LED for the build-up of a simple circuit and a knock flasher.Connect knock sensor to digital interface 3 with the LED carried by digital interface 13. When knock sensor detects a knock signal, the LED will flash.

Sample code:
int Led=13;//define LED interface
int Shock=3//define knock sensor interface
int val;// define digital variable val

void setup(){
pinMode(Led,OUTPUT);//define LED as output interface
pinMode(Shock,INPUT);//define knock sensor as output interface
}

void loop(){
val=digitalRead(Shock);//read and assign the value of digital interface 3 to val
if(val==HIGH)//When knock sensor detects any signal , the LED will flash {
digitalWrite(Led,LOW);
}else{
digitalWrite(Led,HIGH);
}
}
