LMEK20LUU flanged lengthened linear bearing

Details

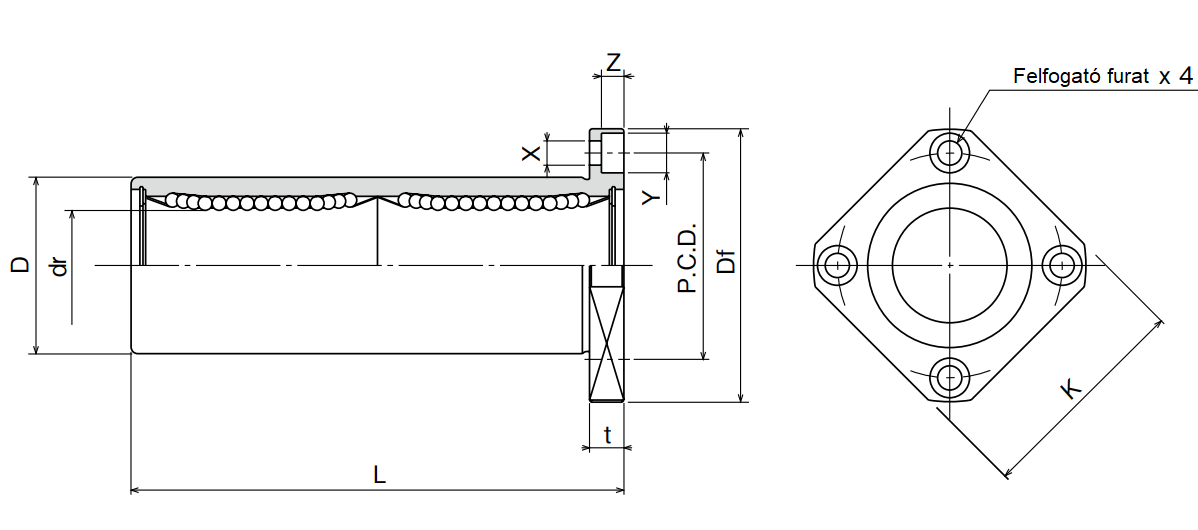

Specification:
Type: LMEK-L
Flange type: Square flange
Size standard: According to ISO - European standard
Length: Double - Extended
d - Inner diameter: 020 mm
Inner diameter tolerance: + 0.011 / -0.001 mm
D - Outer diameter: 032 mm
Outer diameter tolerance: 0 / -0.013 mm
L - Total length: 080 mm
Total length tolerance: 0 / -0.3 mm
Df - Flange diameter: 54mm
K - Edge flattening: 42 mm
t - Flange thickness: 8 mm
PCD - Flange hole spacing: 43 mm
Mounting hole: 5.5 x 9 x 5.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.017 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 02740 N
Dynamic load: 01370 N
Weight: 0.225kg
