LM5LUU lengthened linear bearing
9.73 €
(7.66 € + 27% VAT)
Article No.:
MBNS03105
Downloadable 3d model:
Type:
LM..LUU
Inner diameter:
5mm
Out of stock
Main stock
0 pcs
We deliver our products within 2-4 working days!
Product description

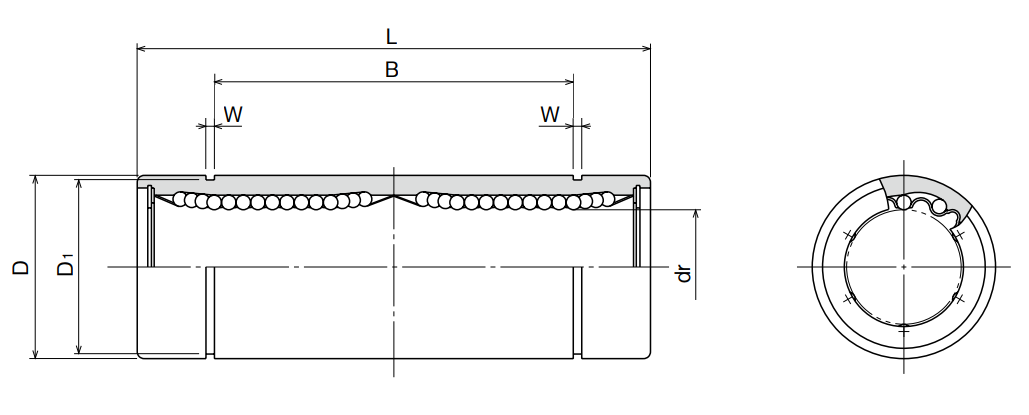

Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 005 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 010 mm
Outer diameter tolerance: 0 / -0.011 mm
L - Total length: 028 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.1 mm
B - Insertion distance: 18.2 mm
D1 - Insertion diameter: 9.6 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 00412 N
Dynamic load: 00261 N
Weight: 0.0084kg
