LM3 linear bearing
LM3 linear bearing
4.99 €

(3.93 € + 27% VAT)

LM3 linear bearing

LM3 linear bearing
4.99 €

(3.93 € + 27% VAT)
Article No.:
MBNS03097
Delivery time:
2-4 working days
Downloadable 3d model:

Type:
LM..
Inner diameter:
3mm
Main stock
24 pcs
We deliver our products within 2-4 working days!
Product description

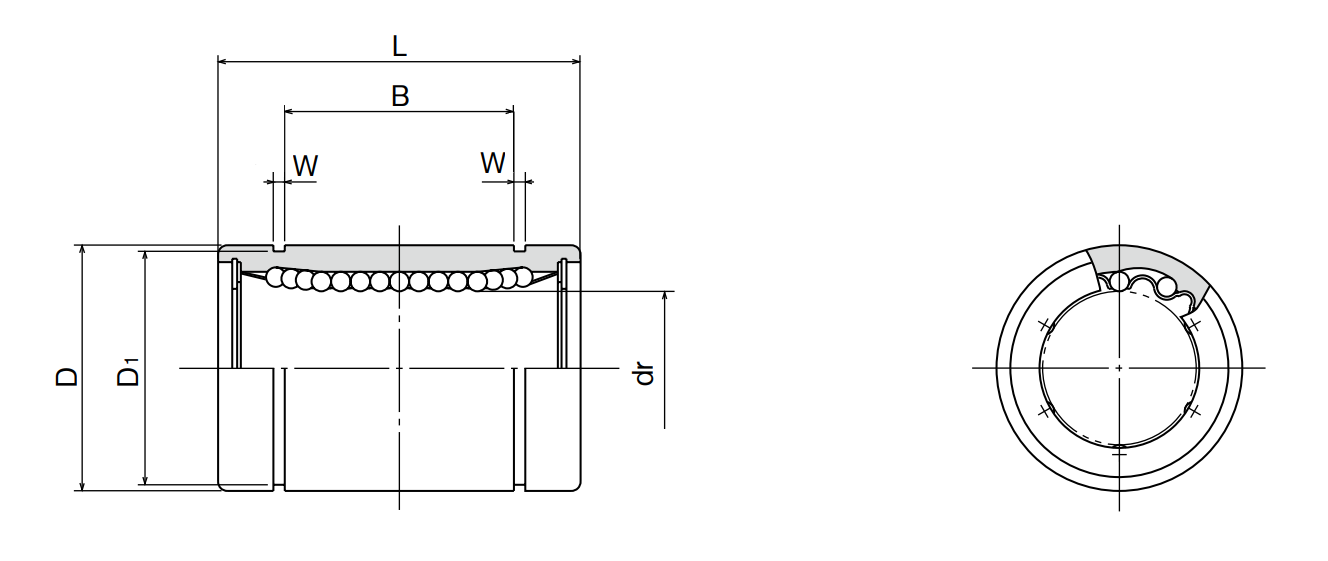

Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 003 mm
Inner diameter tolerance: 0 / -0.008 mm
D - Outer diameter: 007 mm
Outer diameter tolerance: 0 / -0.009 mm
L - Total length: 010 mm
Total length tolerance: 0 / -0.12 mm
W - Insertion width: - mm
B - Insertion distance: - mm
D1 - Insertion diameter: - mm
Preload: Standard
Layout: Standard
Eccentricity: 0.008 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00105 N
Dynamic load: 00069 N
Weight: 0.00135kg
