L9110 L9110S DC Stepper Motor Driver Board HBridge

L9110 L9110S DC Stepper Motor Driver Board HBridge Product Description
* SODIAL is a registered trademark. ONLY Authorized seller of SODIAL can sell under SODIAL listings.Our products will enhance your experience to unparalleled inspiration.

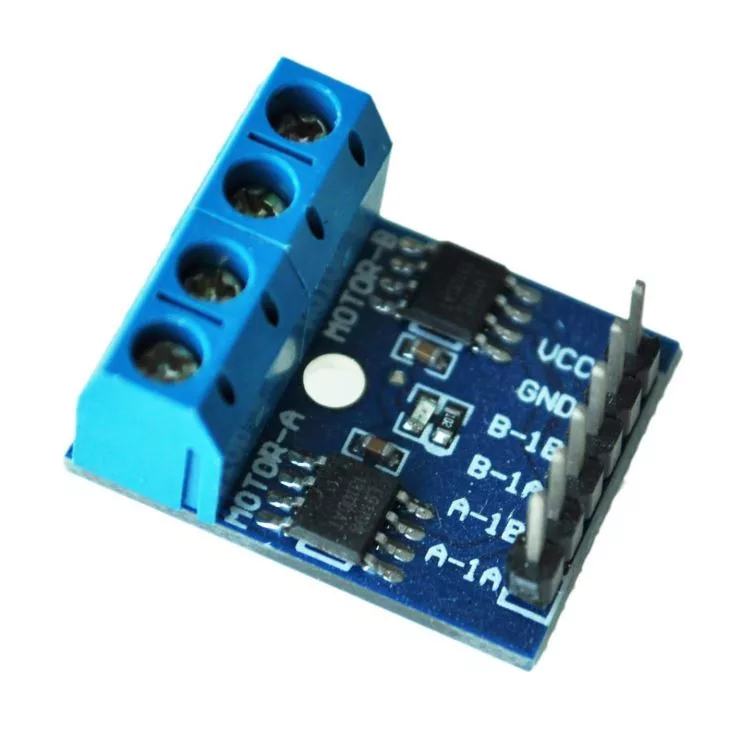

SODIAL(R) L9110S DC Stepper Motor Driver H-Bridge For Arduino 800mA 2.5-12v TTL/CMOS UK.
Onboard two L9110S motor control chip onboard
This module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
Work under low static current
Power supply voltage: DC2.5-12V
Each channel has 800mA continuous current output
Low saturation pressure drop
TTL/CMOS output level compatible, can be connected directly to the CPU
Output built-in clamping diode, apply to the perceptual load
Control and drive integrate in IC
Pin high pressure protection function
Working temperature: 0-80
Size:29*21mm (L*W)
