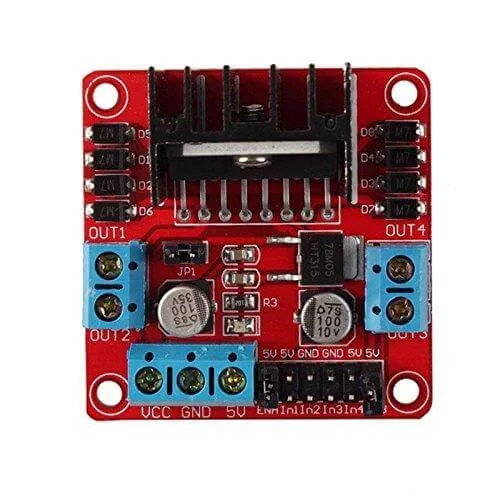

L298N Motor Driver Board Red

L298N Motor Driver Module(Red) Access Module Converter Adapter

Features:
Brand new and high quality.
Low heat, outstanding anti-interference performance.
High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25W.
Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
This module can use built-in 78M05 for electric work via a driving power supply part.But to avoid the damage of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.
Using large capacity filter capacitor, this module can follow current to protect diodes,and improve the reliability.
Double H bridge drive.
Logical voltage: 5V.
Drive voltage: 5V-35V.
Logical current: 0mA-36mA.
Drive current: 2A(MAX single bridge).
Max power: 25W.

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply. DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available

When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
Size: 4.3cm x 4.3cm x 2.7cm
