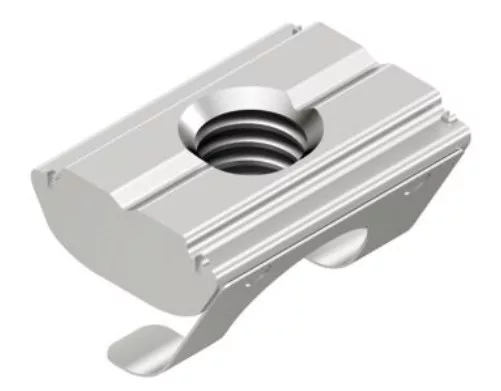

B10 slide nut 20x13,8x5,3 mm, M4 10mm groove
0.65 €
(0.51 € + 27% VAT)
B10 slide nut 20x13,8x5,3 mm, M4 10mm groove
0.65 €
(0.51 € + 27% VAT)
Article No.:
MIDE05930
Delivery time:
2-4 working days

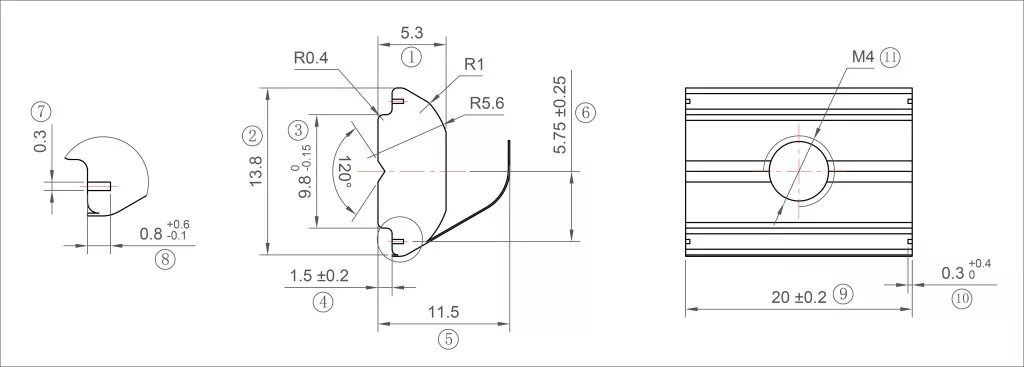

Technical drawing:
Thread diameter:
M4
Groove size:
10mm
Main stock
2000 pcs
We deliver our products within 2-4 working days!
Product description
| Parameters | Values |
| Serie: | B10 (Bosch compatible, groove 10) |
| Material: | Carbon Steel |
| Surface: | Zinc plated |
| Thread: | M4 |
| Mass (g): | 8,8 |
| References: | 3842541393, 096164F |
| Other names: | Roll-in T-slot nut, slide nut, can be tilted up/down, Swivel-in sliding block, with spring |
| Profiles: | Can be used with the profiles B10 40x40 .... (MRAM01090, MTMS05021, MTMS05022, MTMS05020) |
Usage:
The sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached spring. Profile finishing: not required. Preferred to use for all profiles of the series 10. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

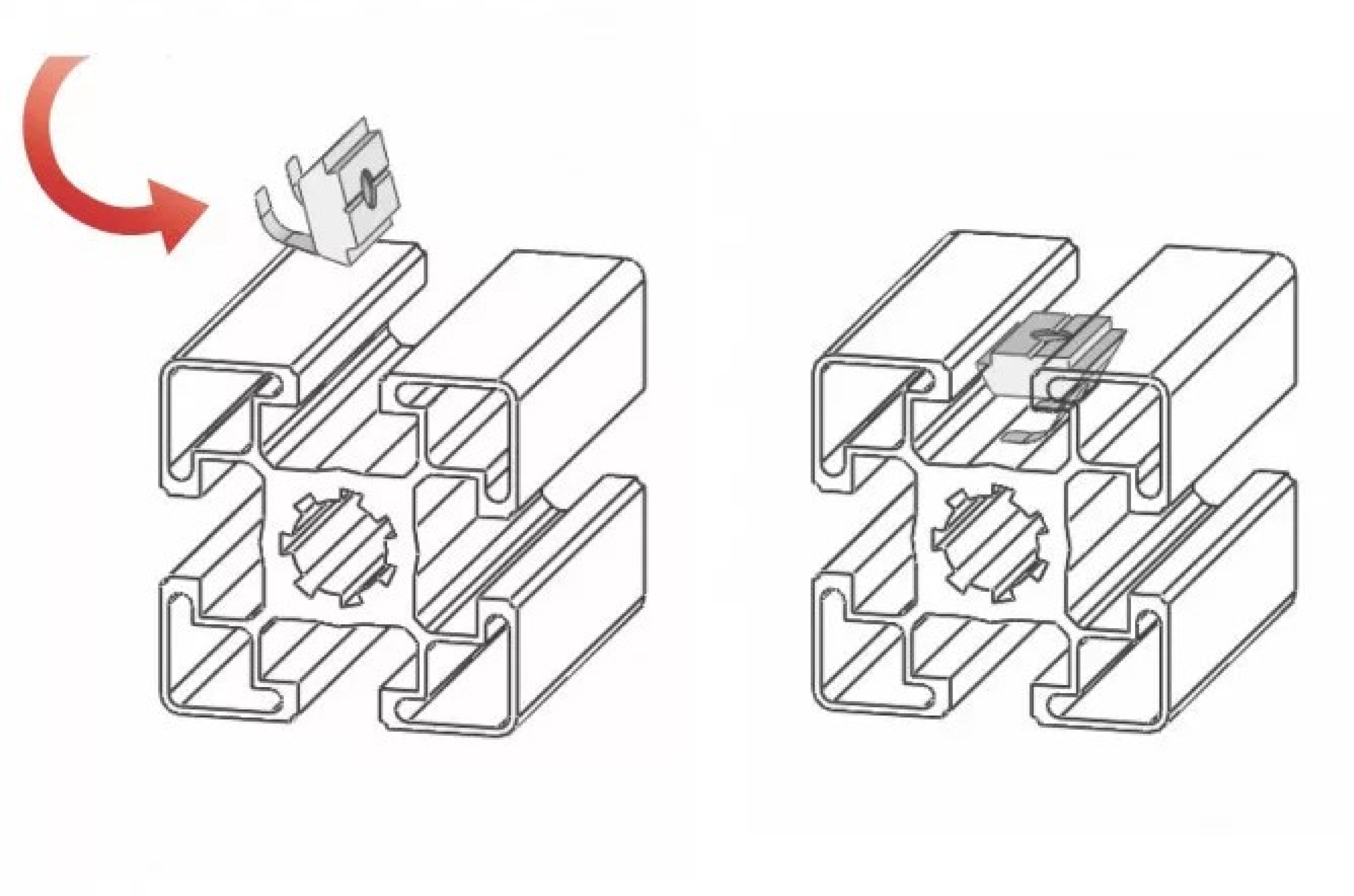

Assembly instruction:
This T-Slot nut can be twisted into place at any point along the Line 10 profile groove and is held in position by a spring-mounted piece.
