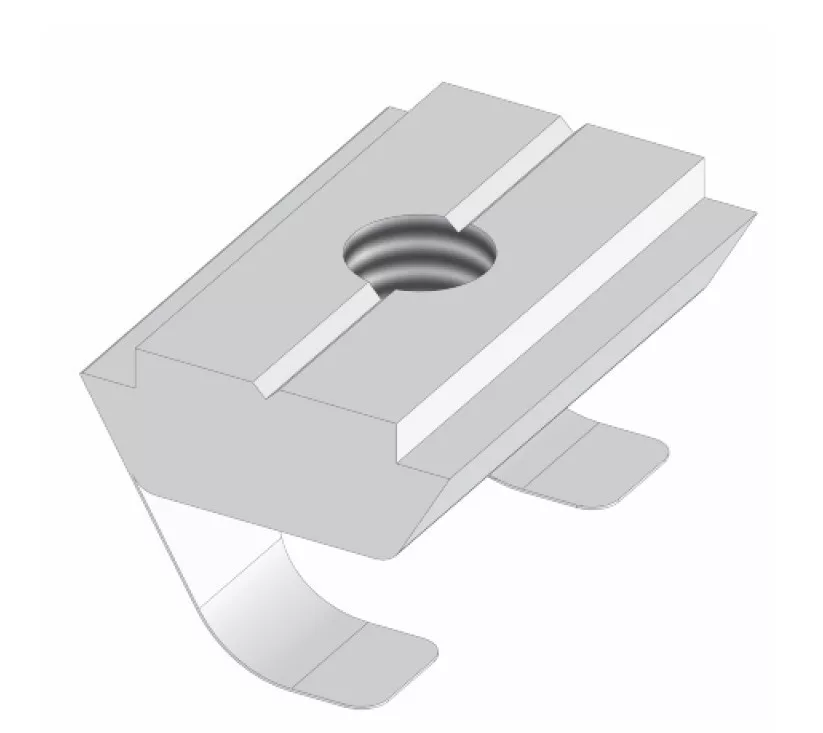

B8 slide nut, M4 8mm groove
0.58 €
(0.46 € + 27% VAT)
B8 slide nut, M4 8mm groove
0.58 €
(0.46 € + 27% VAT)
Article No.:
MIDE05929
Delivery time:
2-4 working days

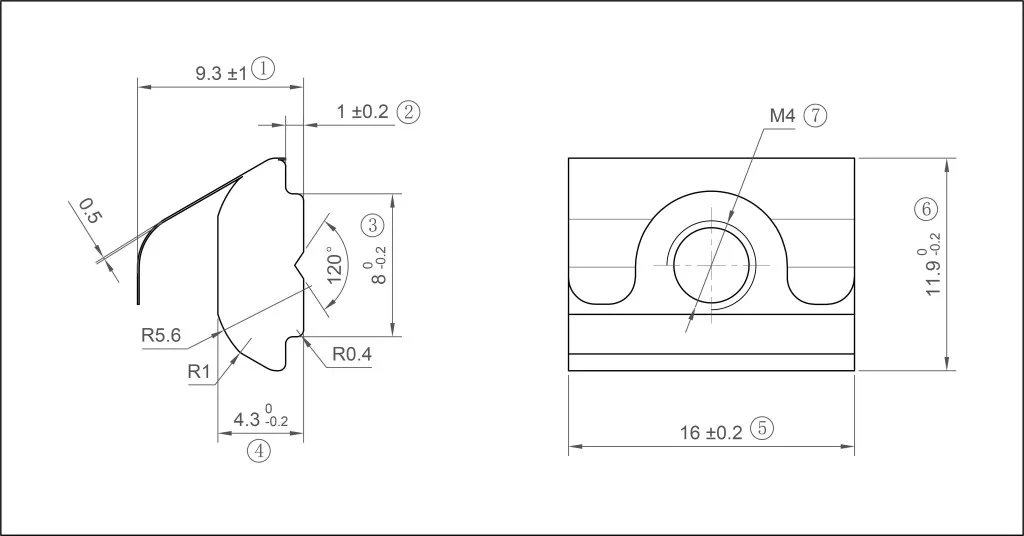

Technical drawing:
Thread diameter:
M4
Groove size:
8mm
Main stock
2000 pcs
We deliver our products within 2-4 working days!
Product description
| Parameters | Values |
| Serie: | B8 (Bosch compatible, groove 8) |
| Material: | Carbon Steel 1045+SS304 |
| Surface: | Zinc plated+Plain |
| Thread: | M4 |
| Mass (g): | 4,7 |
| References: | 3842529294, 096314EF |
| Other names: | Roll-in T-slot nut, slide nut, can be tilted up/down, Swivel-in sliding block, with spring |
| Profiles: | Can be used with the profiles B8 30x30, B8 30x60 (MRAM01107, MTMS05019) |
Usage:
The sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached spring. Profile finishing: not required. Preferred to use for all profiles of the series 8. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

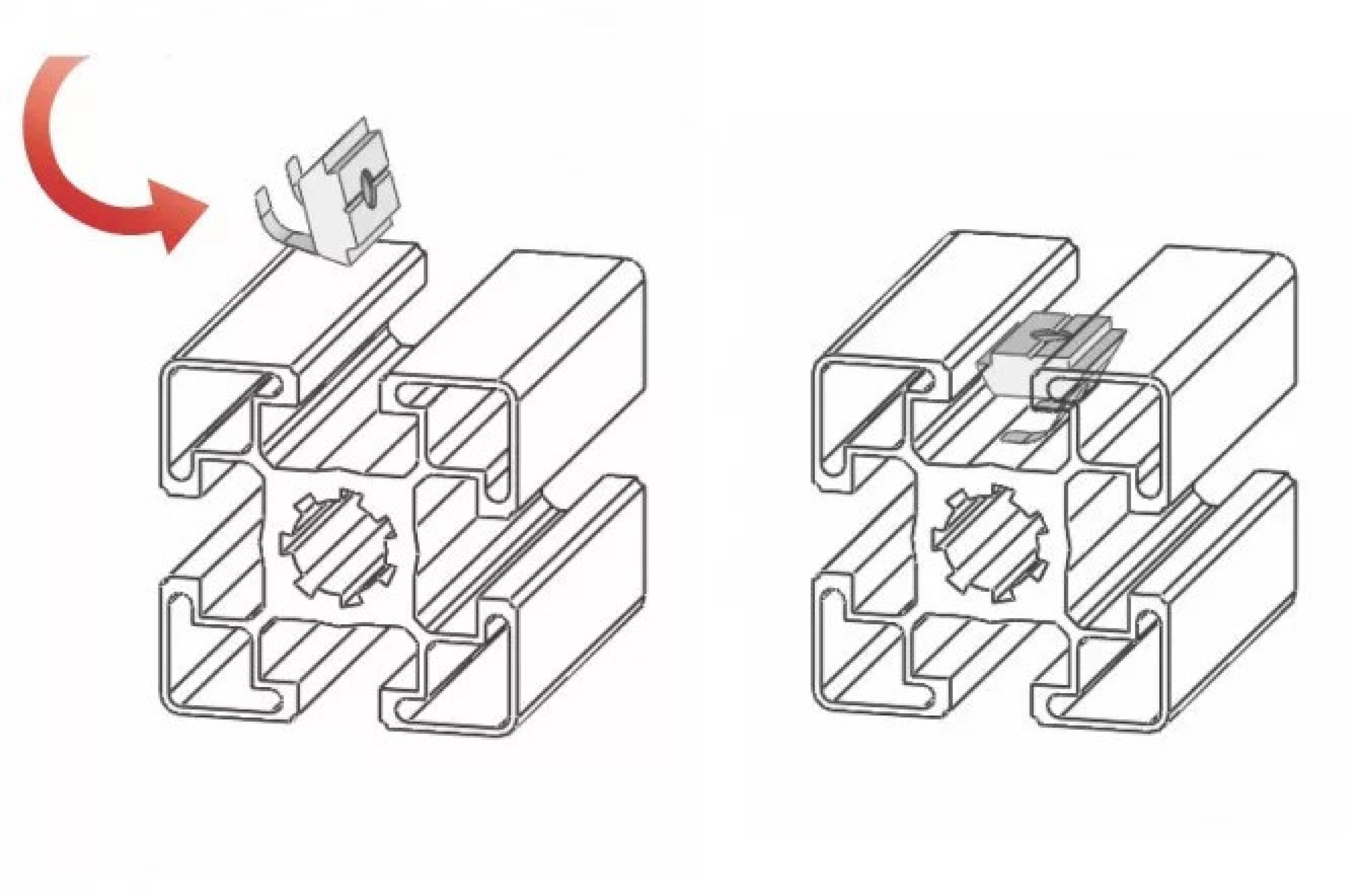

Assembly instruction:
This T-Slot nut can be twisted into place at any point along the Line 8 profile groove and is held in position by a spring-mounted piece.
