B8 T-connector plate 30 x 30 mm

Name: B8 T-connector plate 30 x 30 mm
Brand: Caxtool
SKU: MIDE05911
Price: 1.58 EUR
Availability: InStock

1,58 €

(1,30 € + 22% VAT)

Article No.:

MIDE05911

Delivery time:

2-4 working days

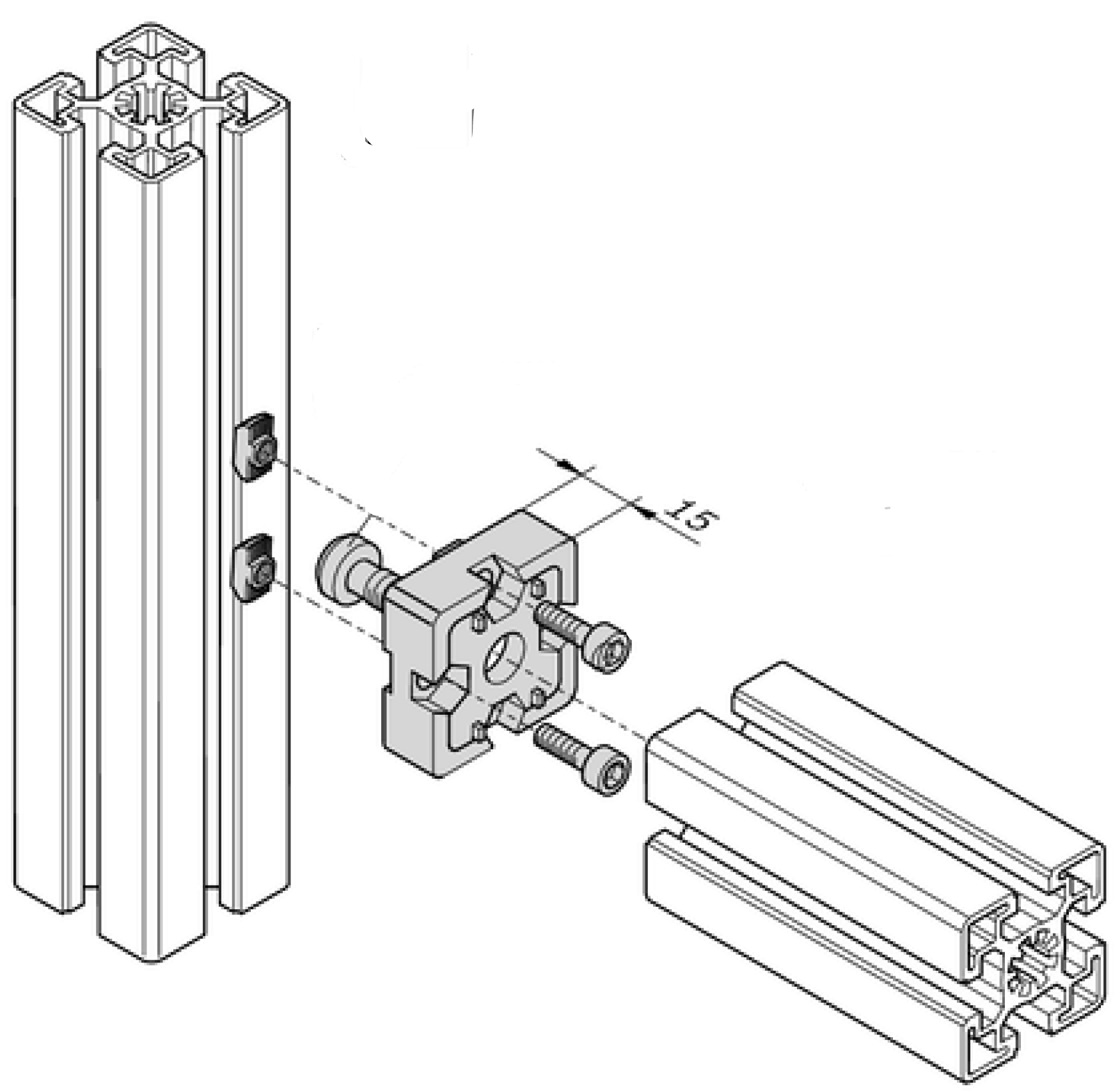

Technical drawing:

Profile dimensions:

30x30mm

Groove size:

8mm

Main stock

100 pcs

We deliver our products within 2-4 working days!

Podrobnosti

Parameters	Values
Serie:	B8 (Bosch compatible, groove 8)
Material:	Alu alloy
Surface:	Plain
Dimensions (mm):	A = 30, N = 8, D1 = 14, D2 = 9,3 d1 = 5,5 d2 = 9, T = 15, H = 2
Mass (g):	23
Reference:	3842524476
Other names:	T connector
Profiles:	Can be used with the profiles B8 30x30 (MRAM01107)

Usage:
The T-connector is used for the stable, unworking 90°connection of two profiles. In other terms, the T-connector is used to amend the strengthening of profile connections.

Fastening material:
2 x Hex. socket head cap screw M5x16. 1x Hex. socket head cap screw M8x30, 2x T-nut groove 8 M5,

Assembly instruction:
These T-connector plates are used for a stable 90° connection with small machining effort. One M8 thread must be cut into the core bore of one profile and fix the plate to the profile. Put the T-nuts in the other profile and connect the plate fixed to profile on the right place with screws. Can be built with profile of the series 8 30x30.
