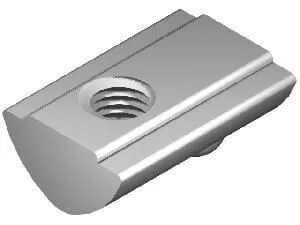

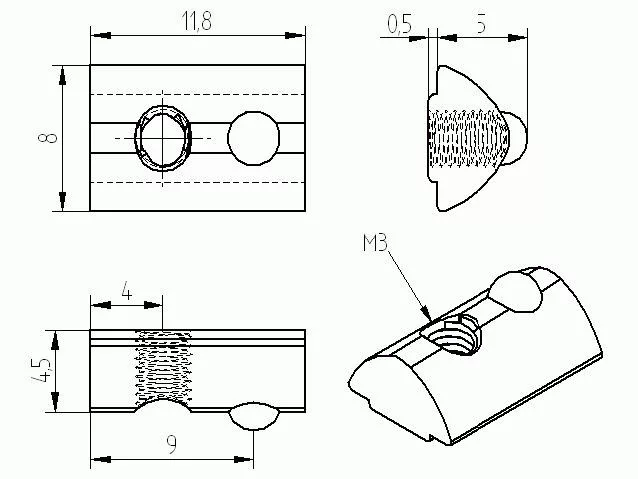

I5 slide nut 12x7,7x4,65 mm, M3 5mm groove

Szczegóły

Parmeters	Values
Serie:	I5 (Item compatible, groove 5)
Material:	Steel, ball 304 SS
Surface:	Zinc plated
Thread:	M3
Mass (g):	2.1
Reference:	0.0.437.19
Other names:	Can be tilted up / down, T-nut with ball
Profiles:	Can be used with all profiles of the class I5 (MRAM02076, MRAM01127)

Usage:
T-slot nuts groove stone can be used individually for numerous fastening possibilities. The groove stone is inserted into the groove side of the face or pivoted into the groove at any point. The spring-mounted ball pressure button, which penetrates the groove base of the profile, locks the groove stone and ensures a quick assembly of attachments of any kind. For fastening, there is a rich selection of screws of different head shapes in stainless steel and galvanized steel for use.

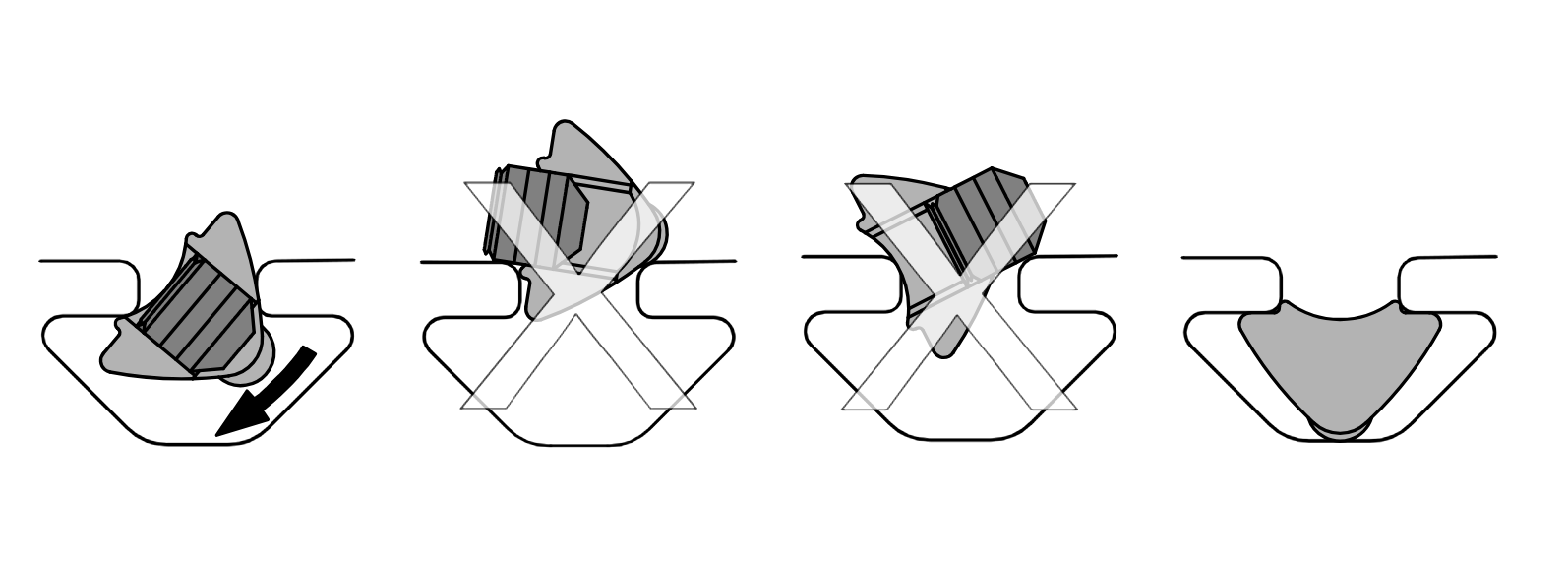

Assembly instruction:
