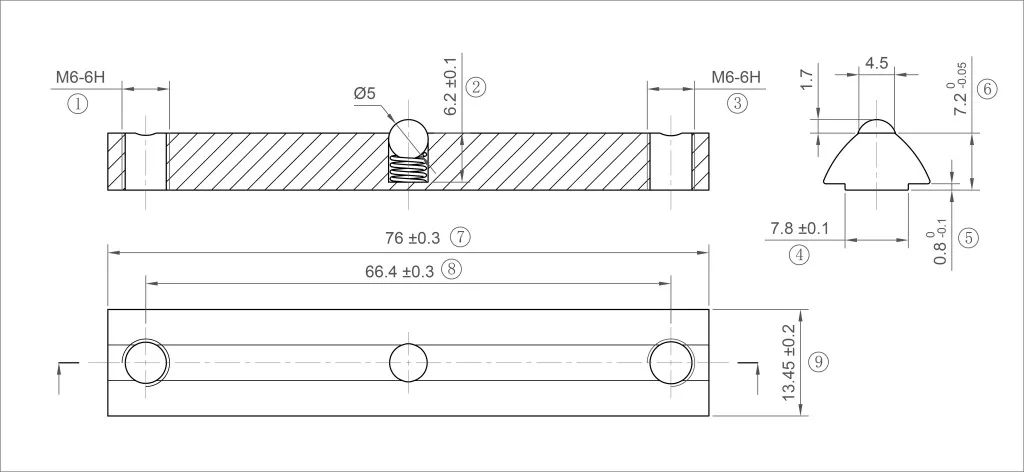

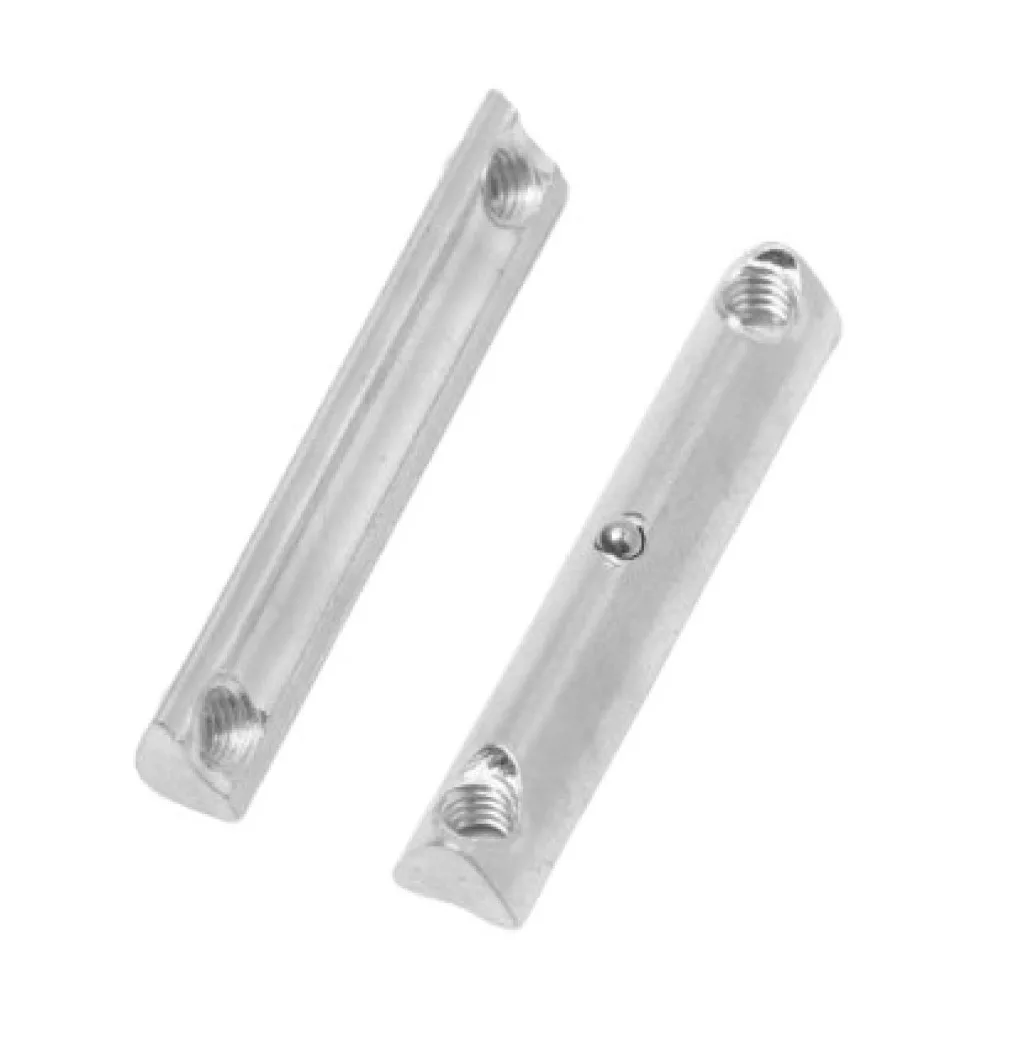

I8 T-Slot nut 76x13,5x7,2 mm, M6 8-as horonyhoz

Szczegóły

Parameters	Values
Serie:	I8 (Item compatible, groove 8)
Material:	Carbon steel, Marbles 304 steel
Surface:	Zinc plated
Thread:	M6
Mass (g):	34,2
References:	0.0.723.10
Other names:	T-slot nut, T-slot 8 with centre bar 2x, Roll in T-slot nut with spring loaded ball
Profiles:	Can be used with the profiles I8 (MRAM01141)

Usage:A T-slot nut can be used individually for numerous fastening possibilities. The slide nut is inserted into the slot side of the face or twisted into the slot at any point. The spring-mounted ball pressure button locks the groove stone and ensures a quick assembly of attachments of any kind. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

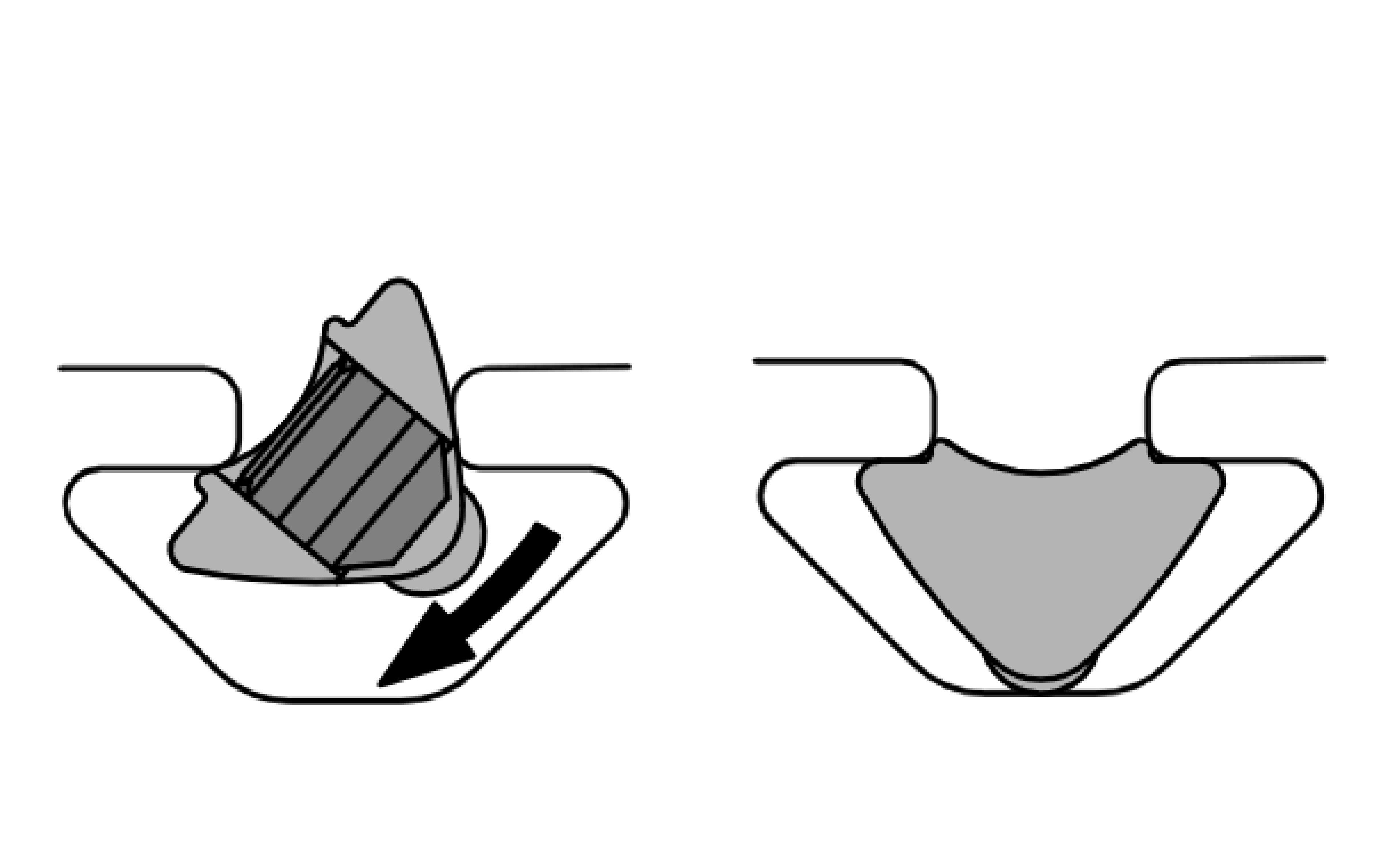

Assembly instruction:This T-Slot nut can be twisted into place at any point along the Line 8 profile groove and is held in position by a spring-mounted piece.
