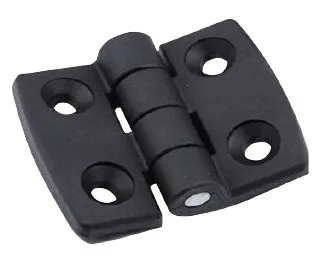

B10 B8 hinge 30/40, 30x30, 40x40 mm, Nylon, 8-10mm groove

Szczegóły

Parameters	Values
Serie:	B8 and B10 (Bosch compatible, groove 8 and groove 10)
Material:	Nylon
Colour:	Black

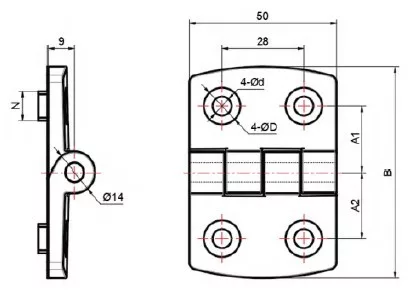

Dimensions (mm):	N = -, A1 = 17,5, A2 = 22,5 B = 65, D = 12,5, d = 6,5
Mass (g):	38
Reference:	3842544528
Other names:	HINGE AL 30/40
Profiles:	Can be used with the profiles B8 30x30 +B10 40x40

Usage:
The hinge is used installation of a door or window where one of the profile 30x30 and the other 40x40.

Fastening material:
2x T-nut groove 10 M6, 2x T-nut groove 8 M6, 2x countersunk screw DIN7991 M6x16, 2x countersunk screw DIN7991-M6X12

Assembly instruction:
Installation does not require machining. Use fastening materials.
