B10 angle corner connection 45x45 mm, 10mm groove

Szczegóły

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Alu alloy
Surface:	Anodized

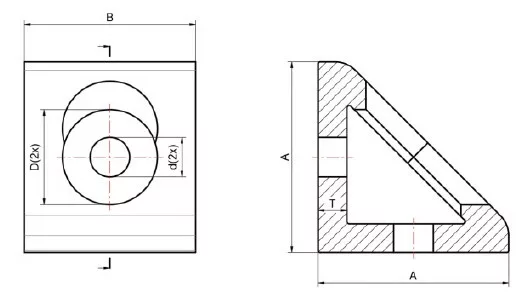

Dimensions (mm):	A = 80, B = 42, D = 20, d = 8,3 E = 20, F = 45, T = 6
Mass (g):	80,7
Reference:	...
Other names:	GUSSET 45X45, Bracket 45x45
Profiles:	Can be used with the profiles B10 45x45, B10 45x90 (MTMS05021, MTMS05022)

Usage:
The angle is used for the stable, unworking 90°connection of two profiles. In other terms, the angle is used to amend the strengthening of profile connections.

Fastening material:
2 x T-nuts, 2 x button head screws M8.

Assembly instruction:
This corner bracket can be mounted with T-slot nuts, screws, hammer head nuts. There are many versions in our range.
