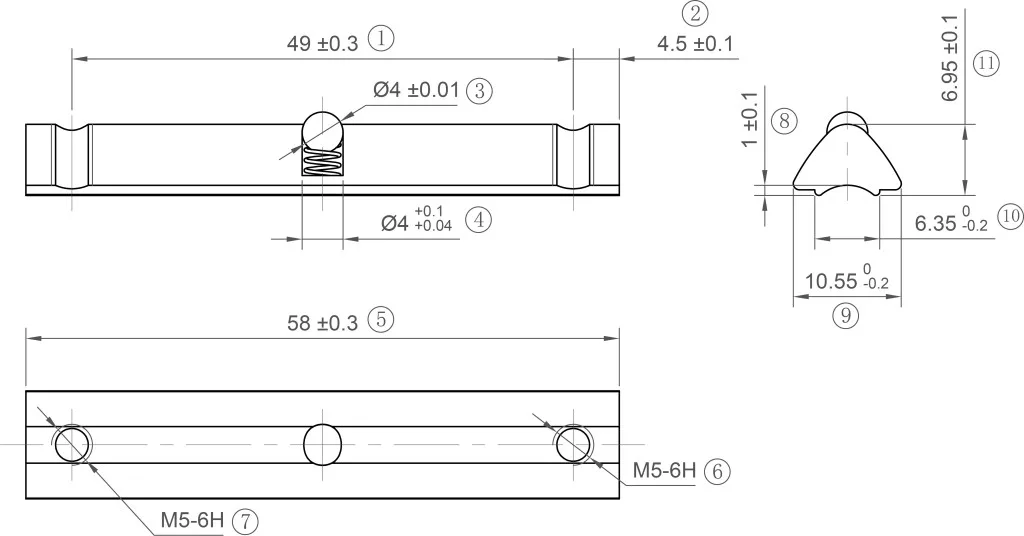

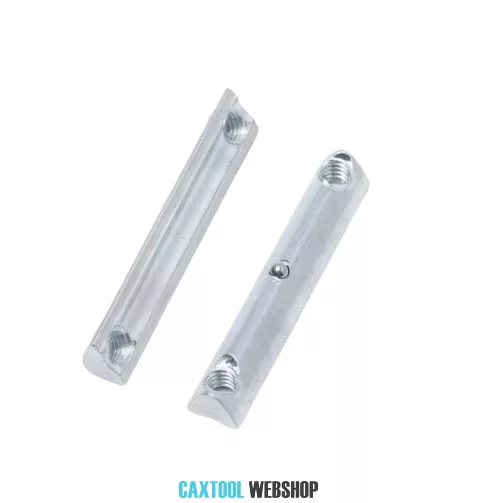

I6 T-slot nut 58x10,55x7 mm, M5 6mm groove

Szczegóły

Parameters	Values
Serie:	I6 (Item compatible, groove 6)
Material:	Carbon steel
Surface:	Zink plated
Thread:	M5
Mass (g):	18,8
Reference:	0.0.615.76
Other names:	Roll-in T-slot nut, slide nut, can be tilted up/down, T-nut with ball
Profiles:	Can be used with the profiles I6 (MRAM01129)

Usage:
T-slots with 2 threads are mainly used for connection with angular elements, thread shape connectors or bolt connectors. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

Assembly instruction:
This T-Slot Nut can be twisted into place at any point along the Line 6 profile groove and is held in position by a spring-mounted piece.
