LM10LUU Łożyska liniowe przedłużane

Szczegóły

Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended

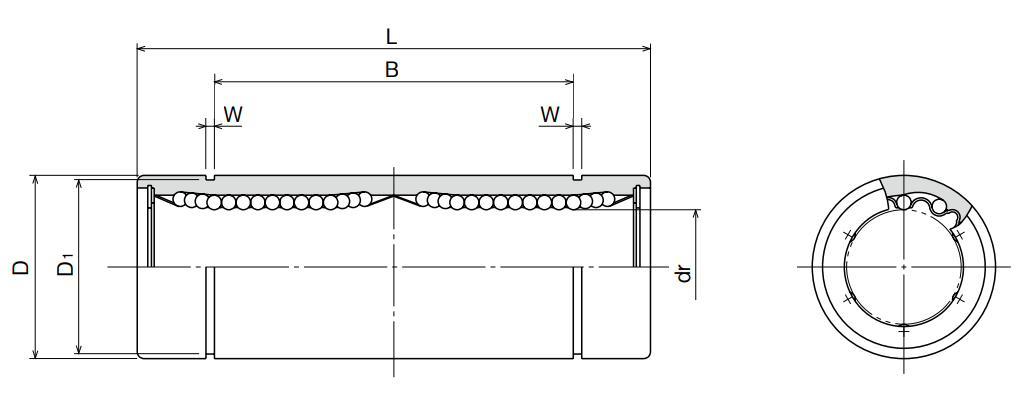

d - Inner diameter: 010 mm
Inner diameter tolerance: 0 / -0.01 mm
D - Outer diameter: 019 mm
Outer diameter tolerance: 0 / -0.016 mm
L - Total length: 055 mm
Total length tolerance: 0 / -0.3 mm
W - Insertion width: 1.3 mm
B - Insertion distance: 41.4 mm
D1 - Insertion diameter: 18 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 10 pcs
Application temperature: -20 / +80 ° C
Static load: 01100 N
Dynamic load: 00588 N
Weight: 0.062kg
