B6 slide nut 11,5x5,7x4,2 mm, M4 6mm groove
0,31 €
(0,26 € + 21% VAT)
B6 slide nut 11,5x5,7x4,2 mm, M4 6mm groove
0,31 €
(0,26 € + 21% VAT)
Article No.:
MRAM04230
Delivery time:
2-4 working days

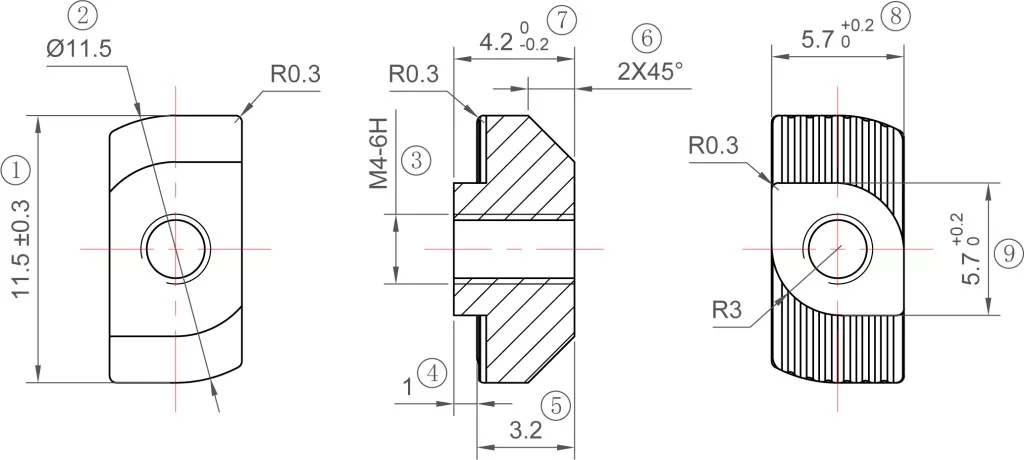

Technical drawing:
Profile dimensions:
20x20mm
Thread diameter:
M4
Groove size:
6mm
Main stock
1864 pcs
We deliver our products within 2-4 working days!
Details
| Parameters | Values |
| Serie: | B6 (Bosch compatible, groove 6) |
| Material: | Carbon steel 1010A |
| Surface: | Zinc plated |
| Thread: | M4 |
| Mass (g): | 1,15 |
| References: | 3842523135 |
| Other names: | T-slot nut, Drop in T-nut, T-nut |
| Profiles: | Can be used with the profiles B6 (MRAM01091, MRAM01095, ..) |
Usage:
A T-nut can be used individually for numerous fastening possibilities. You can it insert into the groove and then rotated by 90°. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

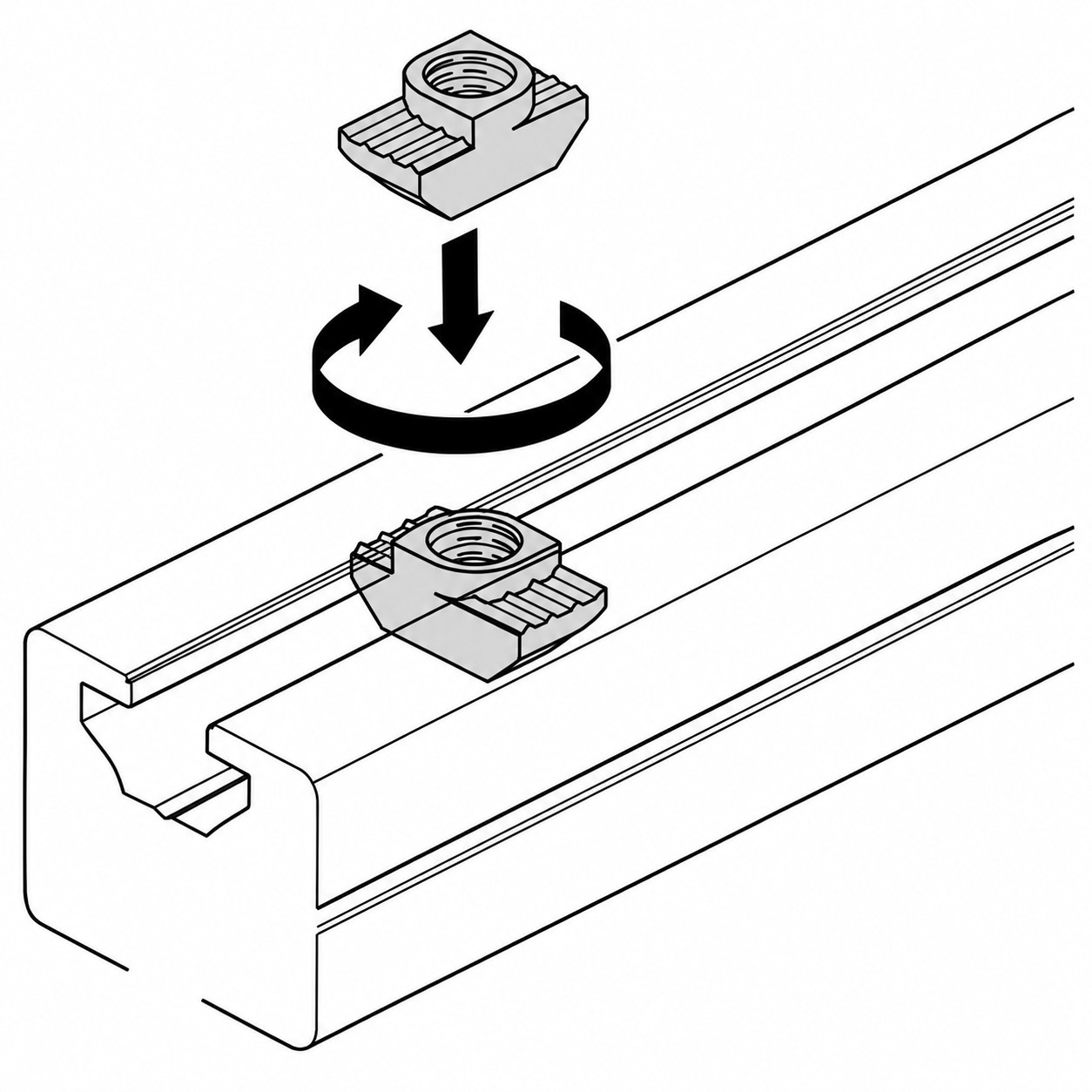

Assembly instruction:
This T-nut can be inserted into place at any point along the Line 6 profile groove.
