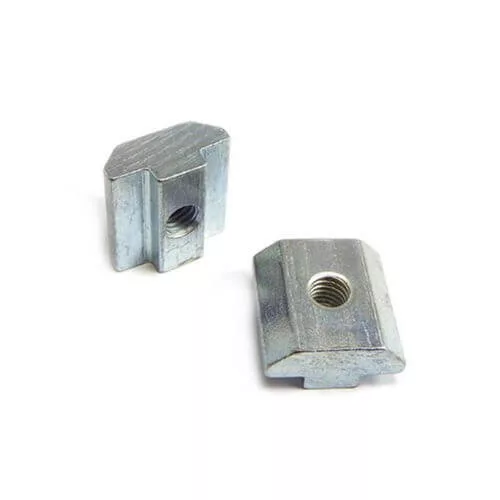

B6 slide nut 10x9,4x4,4 mm, M3 6mm groove
0,40 €
(0,33 € + 21% VAT)
B6 slide nut 10x9,4x4,4 mm, M3 6mm groove
0,40 €
(0,33 € + 21% VAT)
Article No.:
MHGS02154
Delivery time:
2-4 working days

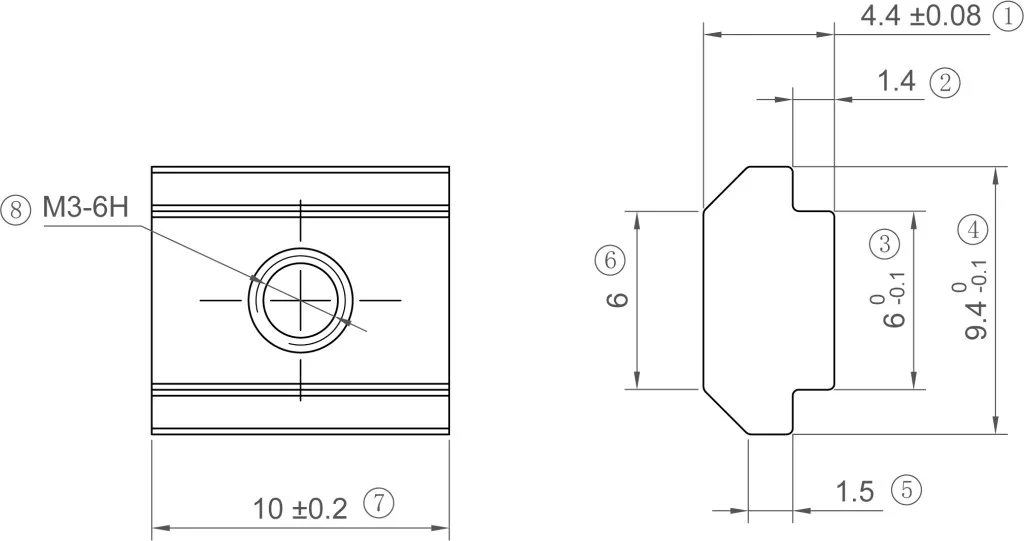

Technical drawing:
Profile dimensions:
20x20mm
Thread diameter:
M3
Groove size:
6mm
Main stock
2616 pcs
We deliver our products within 2-4 working days!
Details
| Parameters | Values |
| Serie: | B6 and VSLOT (Bosch compatible, groove 6) |
| Material: | Carbon steel |
| Surface: | Zinc plated |
| Thread: | M3 |
| Mass (g): | 2,5 |
| References: | 3842547826 |
| Other names: | T-slot nut, Drop in T-nut, T-nut, T-slot stone, Sliding block |
| Profiles: | Can be used with the profiles B6 and VSLOT (MRAM01091, MRAM01095, MTIR01881, MTIR01882, MTIR01883..) |
Usage:
A T-slot can be used individually for numerous fastening possibilities. You can it insert into the groove at the and of bar. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

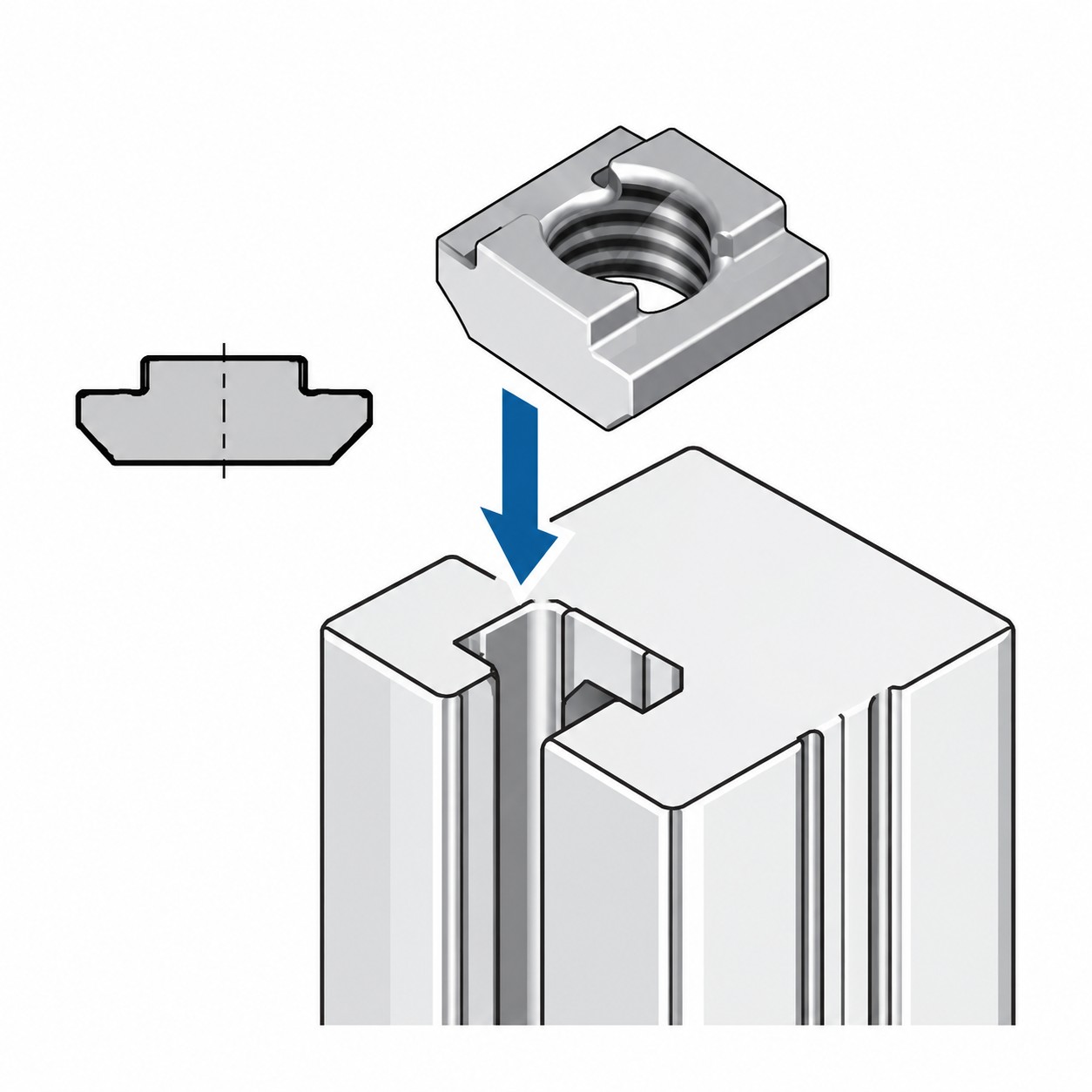

Assembly instruction:
This T-slot can be placed into the slot at the end of profile.
