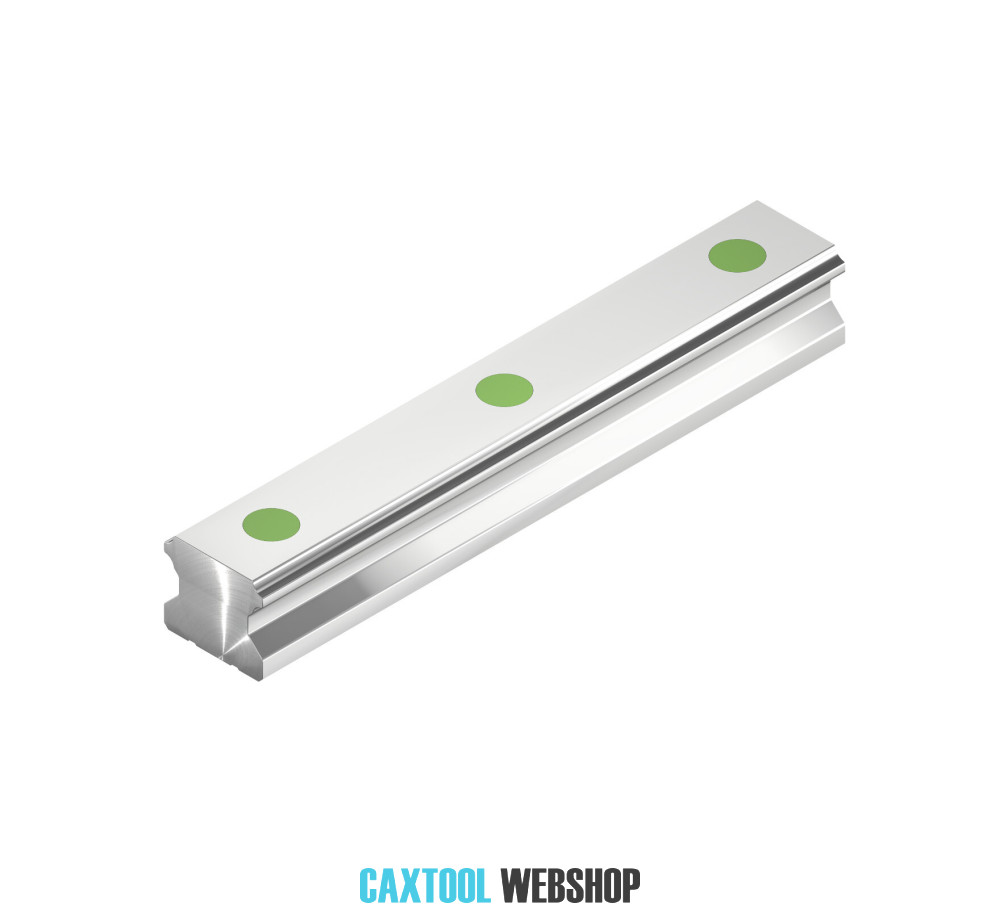

Hiwin HGR15RH linear guide-custom size cut
0,11 €/mm
(0,09 €/mm + 21% VAT)
Stuksprijs: 0,11 €/m
(0,09 €/m + 21% VAT)
Article No.:
MBNS03206
Custom Size Cut
Length (mm)
Quantity
The specified length value must be an integer between 100mm and 1 950mm.
Calculated price
11.269699452
€
Niet op voorraad
Main stock
0 mm
We deliver our products within 2-4 working days!
Details

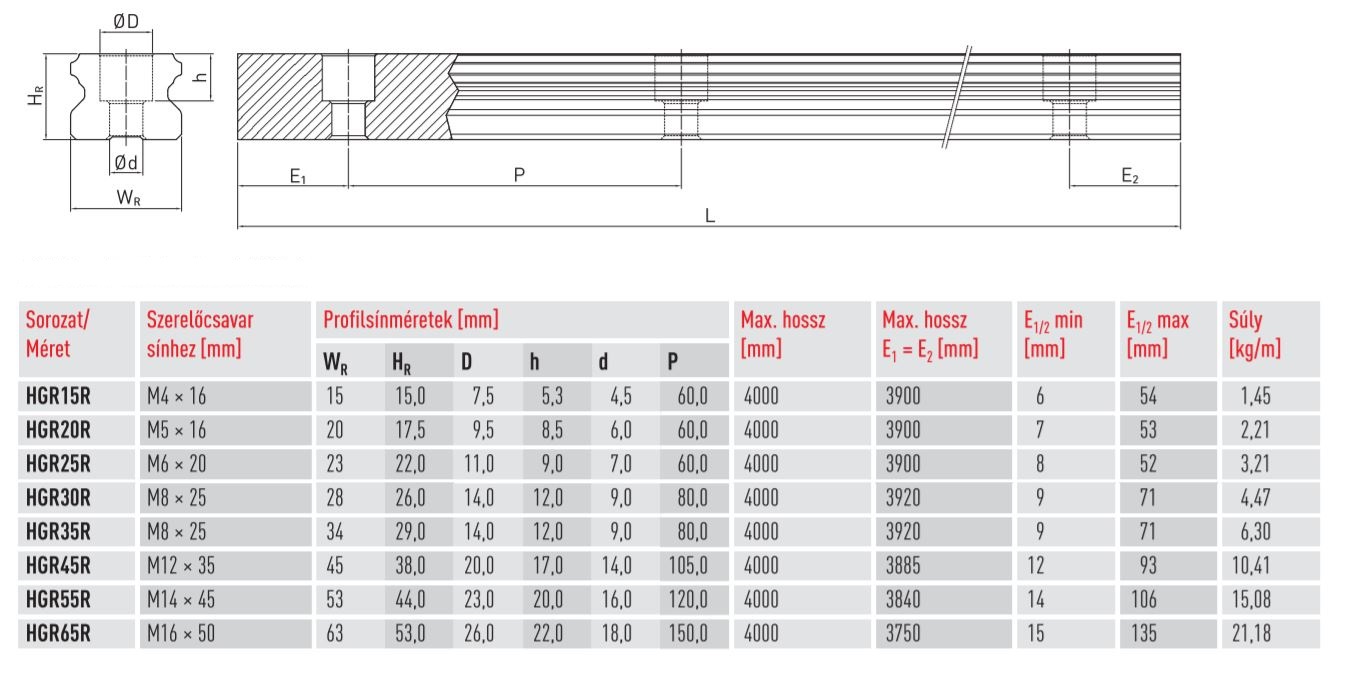

Specification:
Manufacturer: HIWIN
Profile size: 15
P - Hole spacing: 60 mm
H - Rail height: 15 mm
W - Rail width: 15 mm
D - Hole diameter: 7.5 mm
h - Hole depth: 5.3 mm
d - Hole diameter: 4.5 mm
Weight: 14.5 g
Accuracy class: H (High)
Gegevens
Min. bestelhoeveelheid:
100 mm
