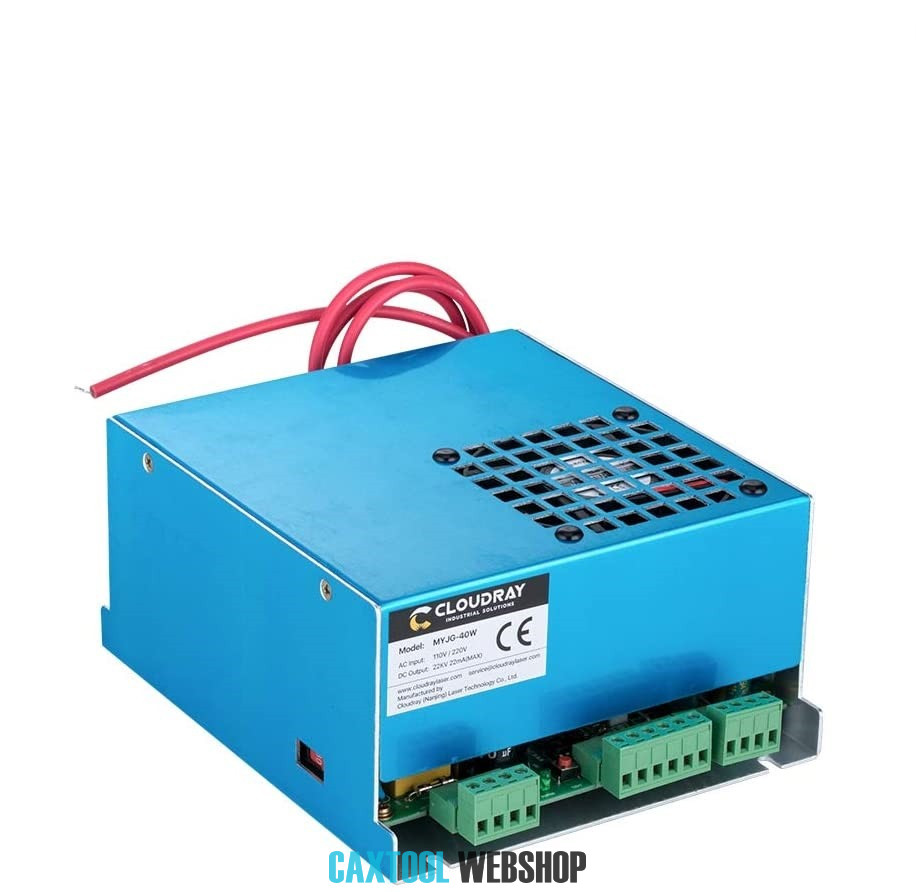

MYJG-40W laser power supply

Details

Specification:
Input Voltage:AC 220V / AC 110V (Adjust with Switch)
AC frequency:47 - 440HZ
Max Input power:250W
Max Input current:3A
Max output voltage:DC23KV DC5KV DC24V
Max output current:DC20mA DC1A DC2A
Efficiency:>/=90%(Full load)
MTBF:>/=10000 Hours
Response speed:≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage:Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Operating temperature:(-10-40) degree Celsius
Relative humidity:≤90%
Cooling:Force-Air Cooling(FAC)
