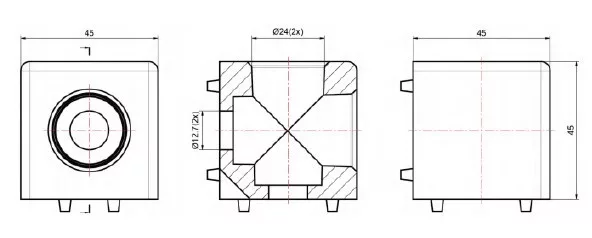

B10 cubic connector 45x45 mm, 3D, 10mm groove, set

Dettalji

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Alu alloy
Surface:	Plain
Mass (g):	219
Reference:	3842549872
Other names:	Cubic joint
Profiles:	Can be used with the profiles B10 45x45 (MTMS05021)

Usage:

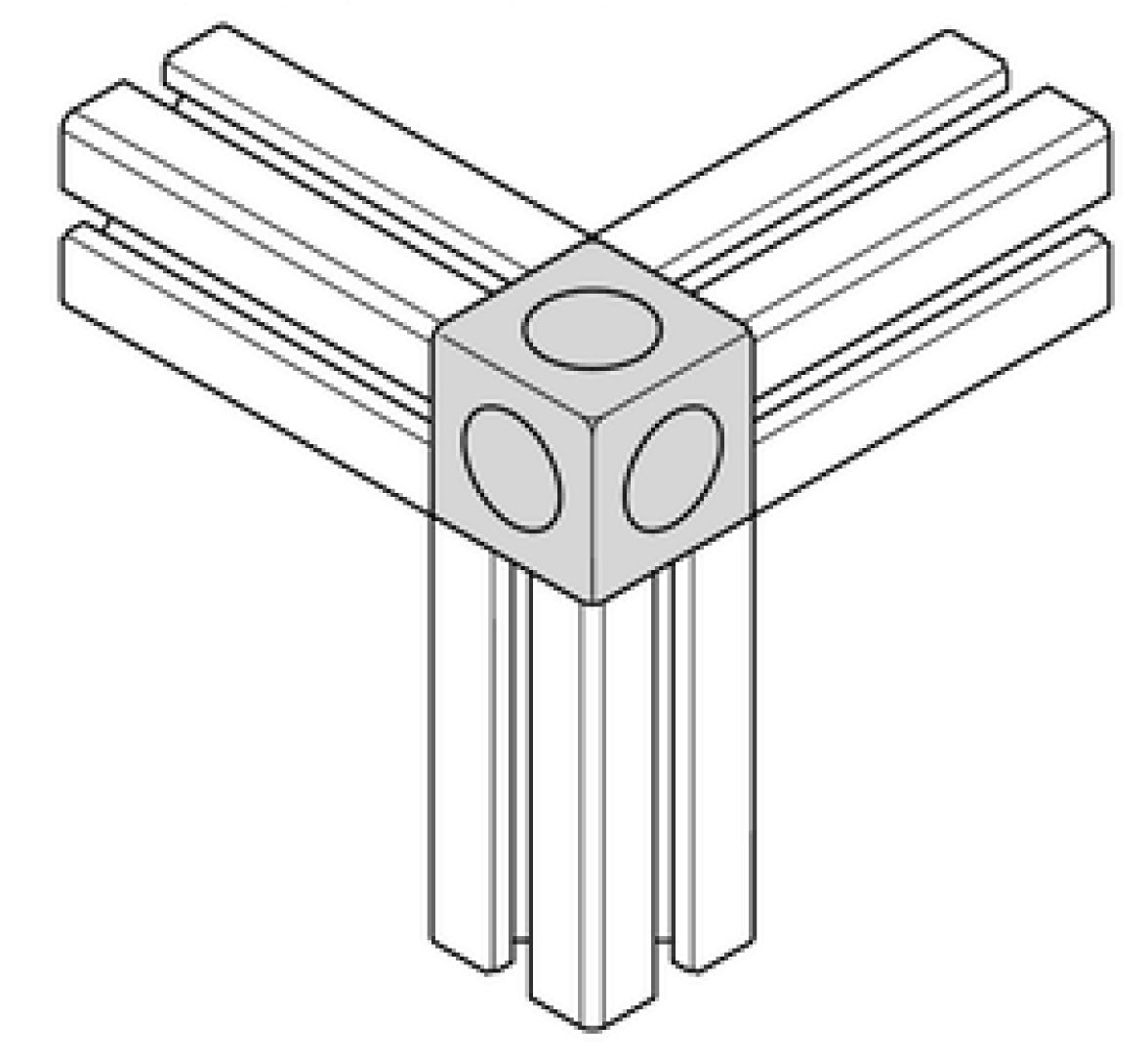

The cube connector set is used for twist-secured 90° connections of three profiles. The set contains three screws and cover plugs each. Can be built with all profiles of the series 10 in grid 45x45.

Fastening material:

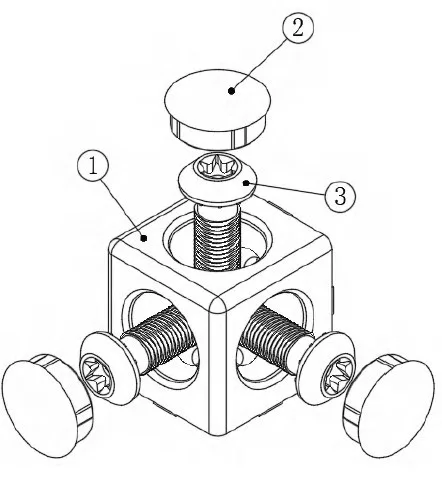

In set: 3x screw S12x30, Cover cap D24 black (PP)

Assembly instruction:
These cubic connectors are used for a stable 3D 90° connection with small machining effort. Three M12 thread must be cut into the core bore of the profiles. Can be built with profile of the series 10 45x45.
