SC16LUU Linear Slide Block
SC16LUU Linear Slide Block
16,24 €

(13,32 € + 22% VAT)

SC16LUU Linear Slide Block

SC16LUU Linear Slide Block
16,24 €

(13,32 € + 22% VAT)
Article No.:
MBNS03185
Delivery time:
2-4 working days
Downloadable 3d model:

Type:
SC..LUU
Inner diameter:
16mm
Main stock
34 pcs
We deliver our products within 2-4 working days!
Dettagli

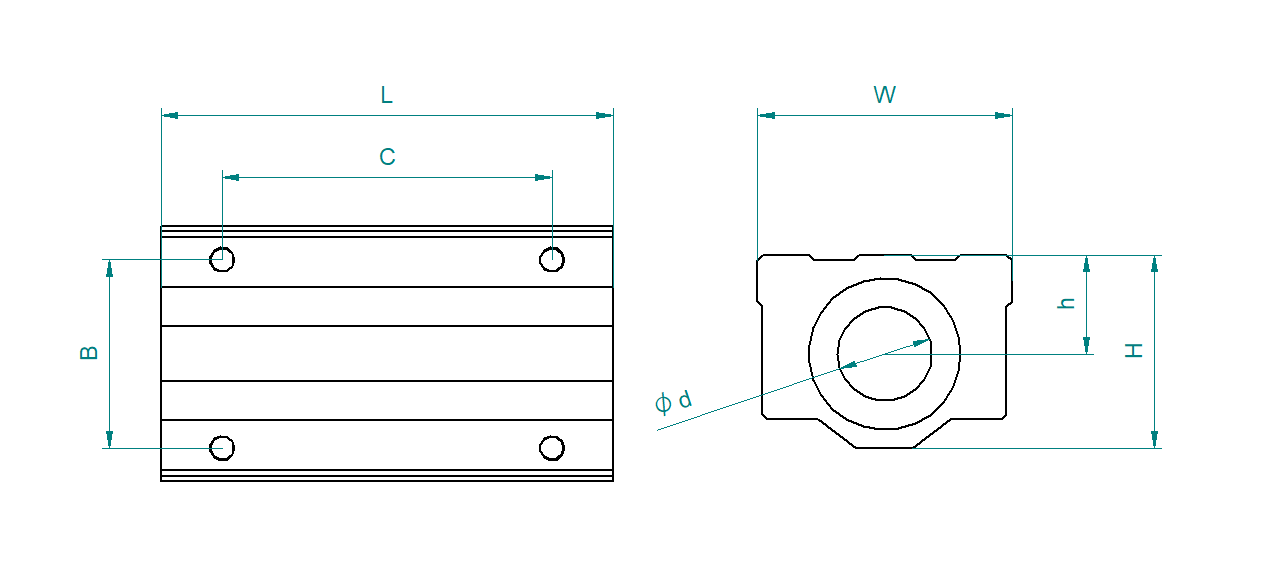

Specification:
Type: SC-L - closed housing
d - Inner diameter: 16 mm
h - Shaft height: 19 mm
H - Total height: 038.5 mm
W - Total width: 050 mm
L - Total length: 085 mm
B - Hole pitch: 036 mm
C - Hole spacing: 060 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 02350N
C - Dynamic load capacity: 1230N
Bush type: 2 x LM 16 UU
Applicability temperature: -20 / 80°C
Unit type: Four arresting holes, Double ball bushing unit
Dimensional standard: JIS - Japanese standard
