LMHP20LUU flanged lengthened linear bearing

Dettagli

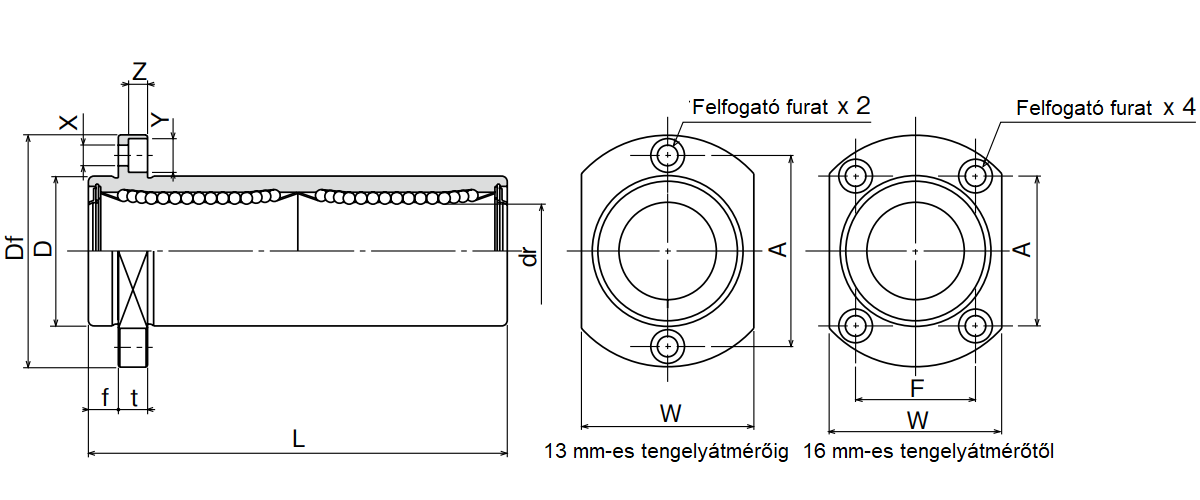

Specification:
Type: LMHP-L
Flange type: Flattened flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 020 mm
Inner diameter tolerance: 0 / -0.01 mm
D - Outer diameter: 032 mm
Outer diameter tolerance: 0 / -0.016 mm
L - Total length: 080 mm
Total length tolerance: 0 / -0.2 mm
f - Shoulder length: 8 mm
Df - Flange diameter: 54mm
W - Edge flattening: 38 mm
t - Flange thickness: 8 mm
A - Hole pitch: 36 mm
F- Hole pitch: 24 mm
Mounting hole: 5.5 x 9 x 5.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.02 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 02740 N
Dynamic load: 01400 N
Weight: 0.247kg
