B8 hammer-head srew M8x25

Pojedinosti

Parameters	Values
Serie:	B8 (Bosch compatible, groove 8)
Material:	Carbon steel grade 8.8
Surface:	Zinc plated
Mass (g):	11,5
Reference:	3842528718
Other names:	T-HEAD BOLT, Hammer Head Screw
Profiles:	Can be used with the profiles B8 30x30, B8 30x60 (MRAM01107, MTMS05019)

Usage:

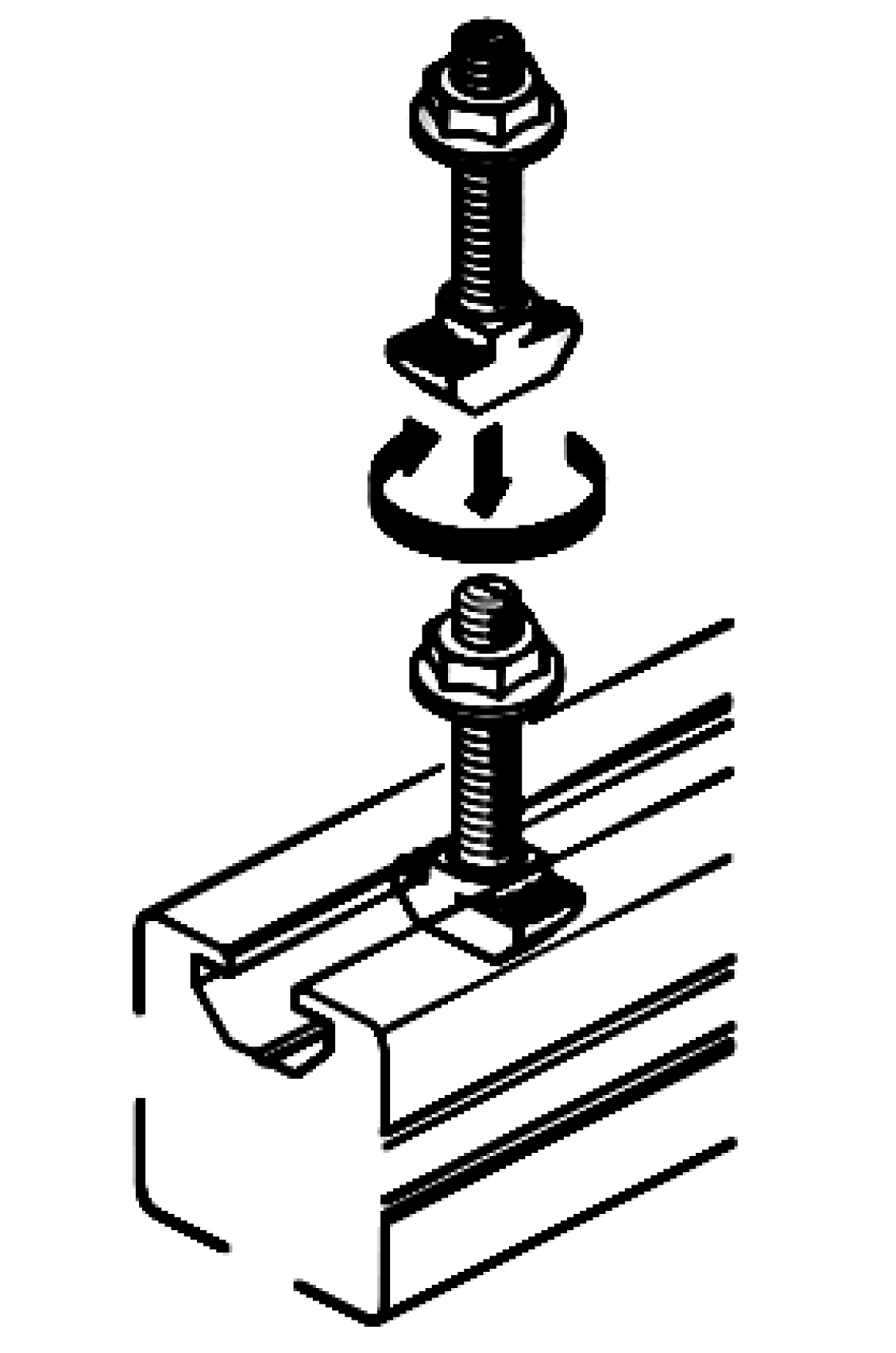

The head width of the hammer-head screw is designed so that it can be inserted into the profile slot from above; to ensure a secure hold, the hammer head must be rotated 90° within the profile slot. The collar beneath the hammer head is designed to prevent the hammer head screws from being over-tightened. Can be built with all profiles of the series B8.

Fastening material:
__

Assembly instruction:
These hammer-head screws are used for a stable connection with angle brackets, corner connections without machining effort. As nut you can use Hex. flange nut (MMEK05828, MMEK04849),
