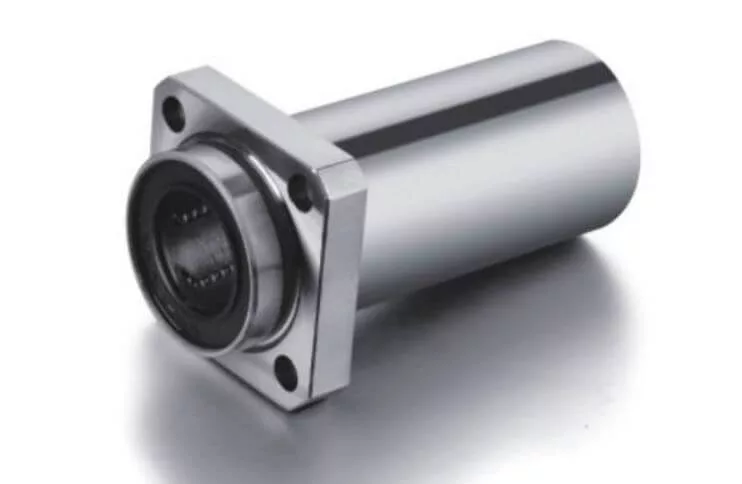

LMKP16LUU flanged lengthened linear bearing

Name: LMKP16LUU flanged lengthened linear bearing
Brand: Caxtool
SKU: MBNS03158
Price: 32.37 EUR
Availability: OutOfStock

32,37 €

(25,89 € + 25% VAT)

Article No.:

MBNS03158

Downloadable 3d model:

Type:

LMKP..LUU

Inner diameter:

16mm

Nema na zalihi

Main stock

0 pcs

We deliver our products within 2-4 working days!

Pojedinosti

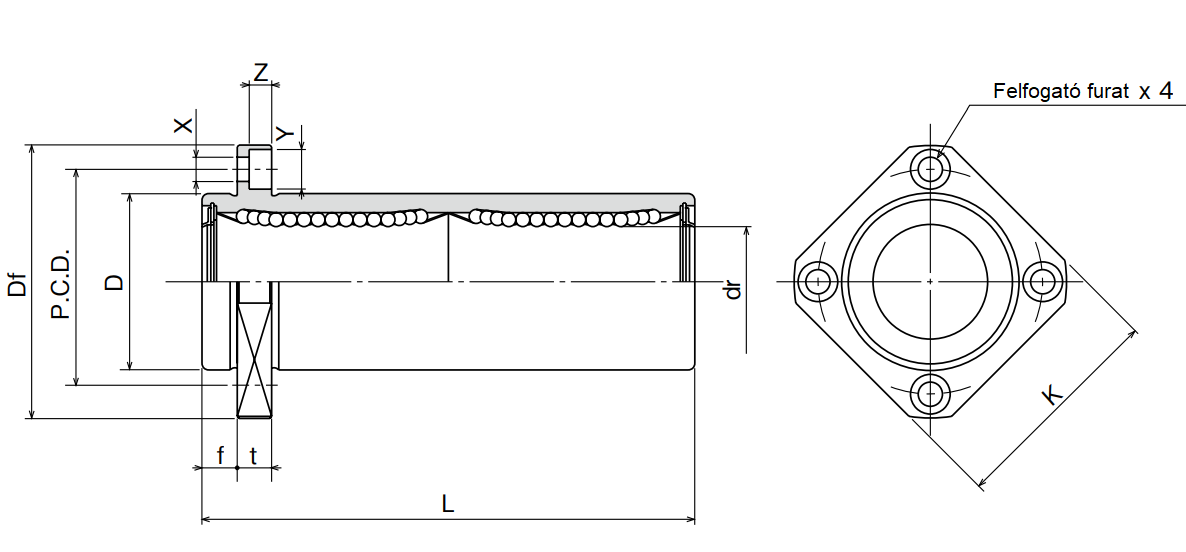

Specification:
Type: LMKP-L
Flange type: Square flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 016 mm
Inner diameter tolerance: 0 / -0.01 mm
D - Outer diameter: 028 mm
Outer diameter tolerance: 0 / -0.016 mm
L - Total length: 070 mm
Total length tolerance: 0 / -0.3 mm
f - Shoulder length: 6 mm
Df - Flange diameter: 48mm
K - Edge flattening: 37 mm
t - Flange thickness: 6 mm
PCD - Flange hole spacing: 38 mm
Receiving hole: 4.5 x 7.5 x 4.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 02350 N
Dynamic load: 01230 N
Weight: 0.165kg
