LMHP8LUU flanged lengthened linear bearing

Name: LMHP8LUU flanged lengthened linear bearing
Brand: Caxtool
SKU: MBNS03161
Price: 11.85 EUR
Availability: InStock

11,85 €

(9,56 € + 24% VAT)

Article No.:

MBNS03161

Delivery time:

2-4 working days

Downloadable 3d model:

Type:

LMHP..LUU

Inner diameter:

8mm

Main stock

20 pcs

We deliver our products within 2-4 working days!

Product description

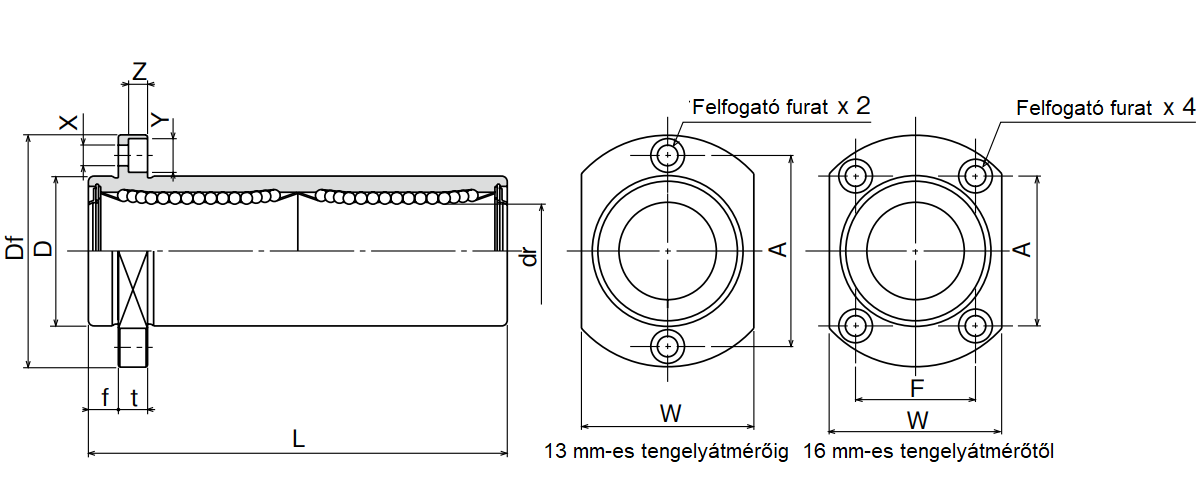

Specification:
Type: LMHP-L
Flange type: Flattened flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 008 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 015 mm
Outer diameter tolerance: 0 / -0.011 mm
L - Total length: 045 mm
Total length tolerance: ± 0.3 mm
f - Shoulder length: 5 mm
Df - Flange diameter: 32mm
W - Edge flattening: 21 mm
t - Flange thickness: 5 mm
A - Hole pitch: 24 mm
F- Hole pitch: - mm
Mounting hole: 3.5 x 6 x 3.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00784 N
Dynamic load: 00431 N
Weight: 0.047kg
