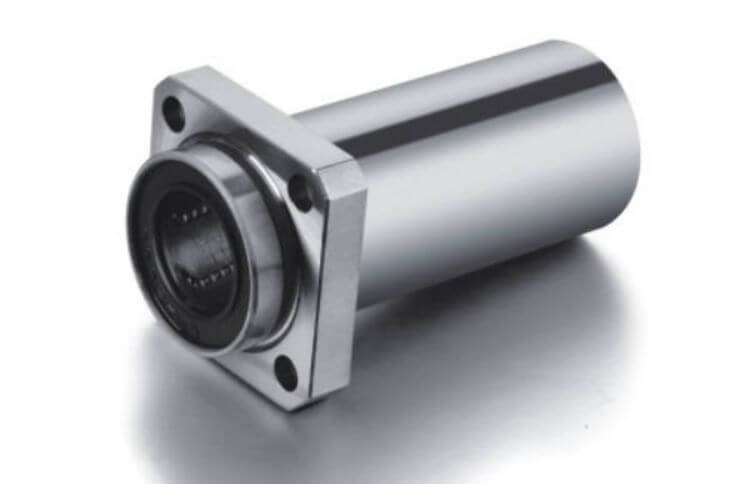

LMKP10LUU flanged lengthened linear bearing

Name: LMKP10LUU flanged lengthened linear bearing
Brand: Caxtool
SKU: MBNS03156
Price: 27.75 EUR
Availability: OutOfStock

27,75 €

(22,38 € + 24% VAT)

Article No.:

MBNS03156

Downloadable 3d model:

Type:

LMKP..LUU

Inner diameter:

10mm

Εξαντλήθηκε

Main stock

0 pcs

We deliver our products within 2-4 working days!

Λεπτομέρειες

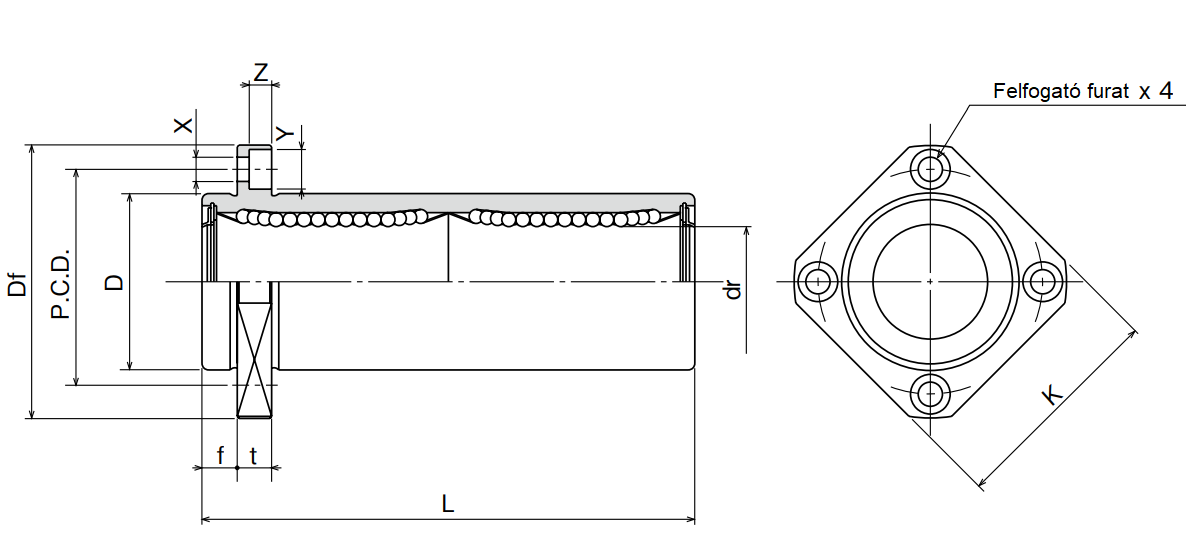

Specification:
Type: LMKP-L
Flange type: Square flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 010 mm
Inner diameter tolerance: 0 / -0.01 mm
D - Outer diameter: 019 mm
Outer diameter tolerance: 0 / -0.013 mm
L - Total length: 055 mm
Total length tolerance: ± 0.3 mm
f - Shoulder length: 6 mm
Df - Flange diameter: 40mm
K - Edge flattening: 30 mm
t - Flange thickness: 6 mm
PCD - Flange hole spacing: 29 mm
Receiving hole: 4.5 x 7.5 x 4.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 01100 N
Dynamic load: 00588 N
Weight: 0.078kg
