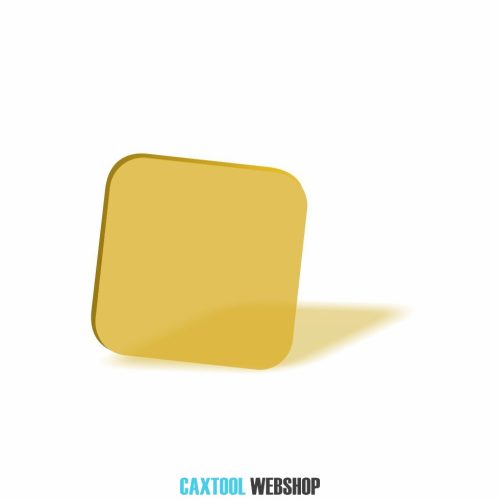

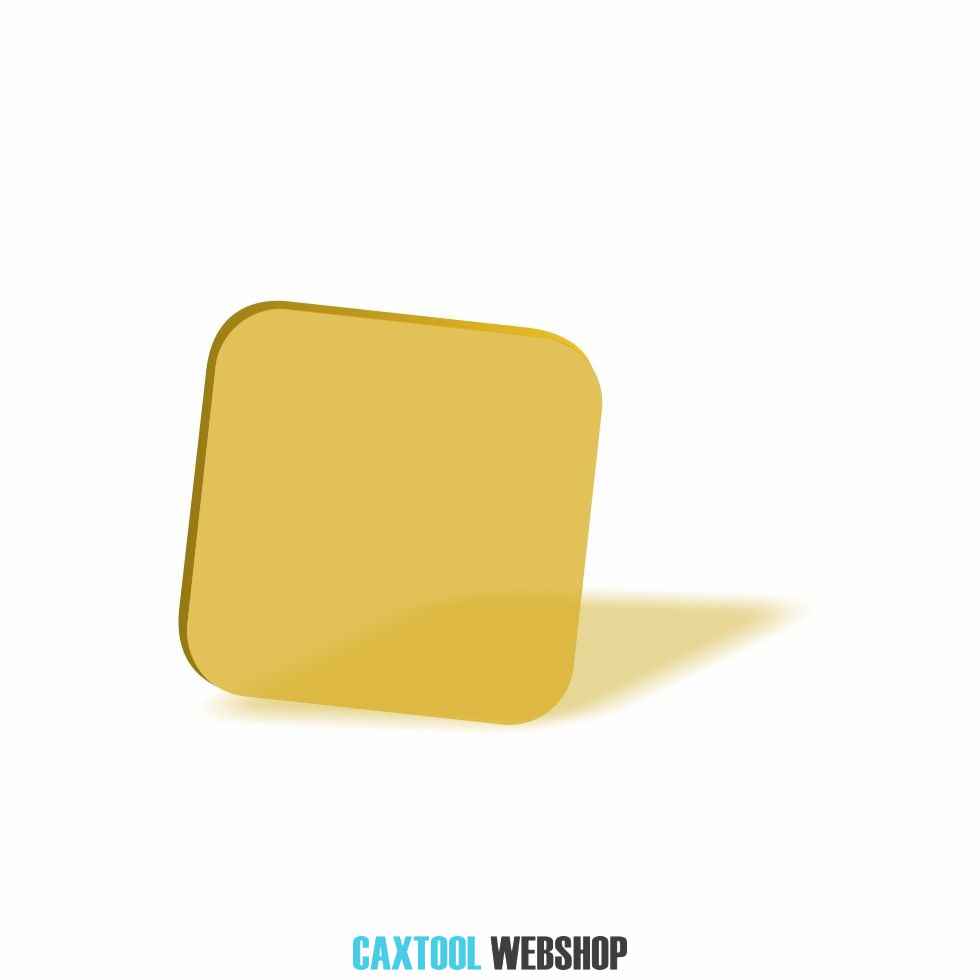

Laservision safety window P1P21 (3 mm)

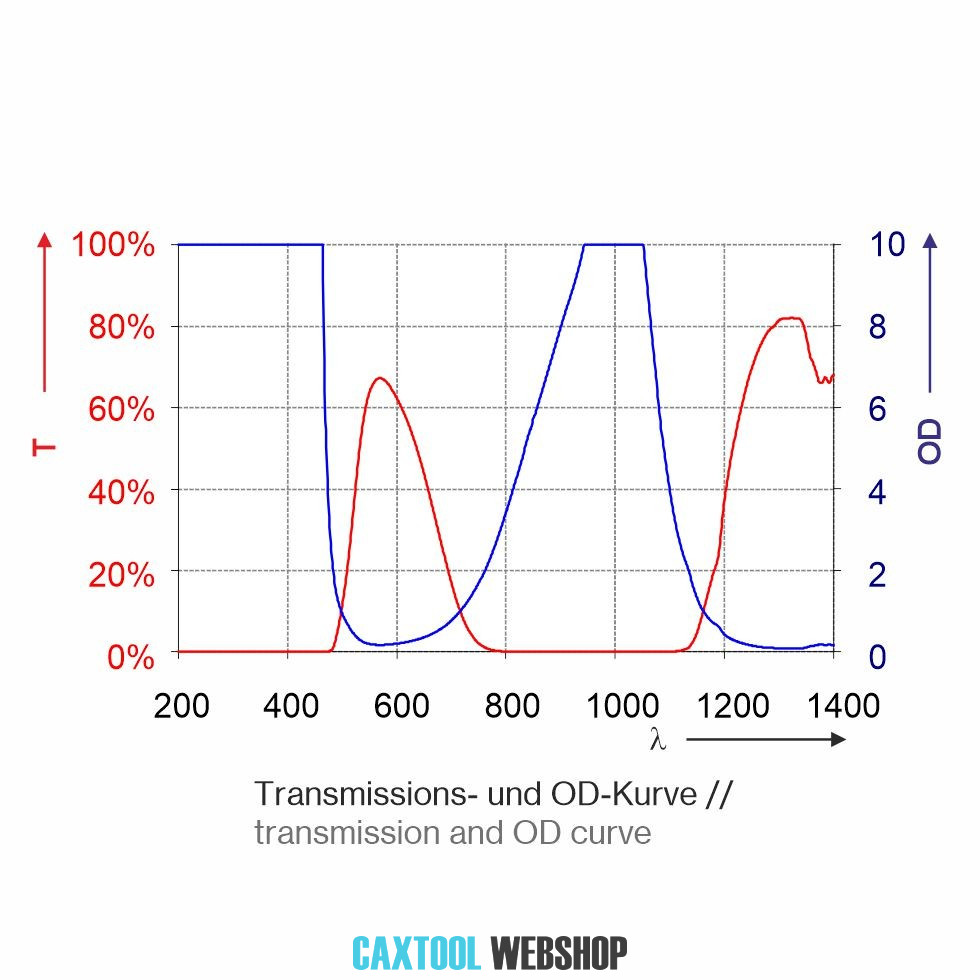

The laservision laser safety window 000.P1P21.2001 (with a thickness of approx. 3-3.2mm) is a gold-colored laser protection window with a scratch-resistant coating. Due to the high ODs in the UV and blue range (OD10+ at 180 – 315 nm; OD8+ >315-464nm), the broad and high protection level within the NIR (OD5+ at 815nm; OD8+ at 880nm, OD10+ at 940-1055nm) and in the infrared (OD8 + at 5230 - 14570 nm), the window is suitable for blue high power diodes as well as for disk, Nd: YAG, fiber or with CO2 lasers. The gold-colored laser safety window is 200x100mm in size and has good color vision and VLT of appr. 47%. It is customer-specific available up to a standard size of 1219x915mm. The maximum size can be 2000 x 1150mm. The thickness is about 3mm.

Specification:
COLOUR: gold
PROTECTION CLASS / NORM:EN 207 full protection
:EN 12254
:EN 60825-4
FILTER MATERIAL: Plastic
PROTECTION RANGE:infrared
:near infrared
:ultraviolet
:visible
FILTER TECHNOLOGY: Absorption filter
COLOUR RECOGNITION: Good
VISUAL BRIGHTNESS: Very good
FILTER THICKNESS: 3mm
COATING:Anti-scratch on both sides
VLT (APPROX.): 50%
