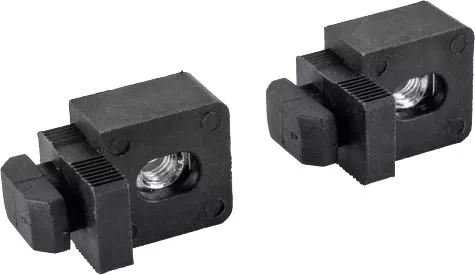

B8 Variofix block to attach panels Nylon, black

Detalles

Parmeters	Values
Serie:	B8 (Bosch compatible, groove 8)
Material:	Nylon
Surface:	-
Thread:	M6
Mass (g):	10
Reference:	3842548832, 094002CSM6
Other names:	Multiblock, Uni block, Clamping block
Profiles:	Can be used with all profiles of the class B8 (MRAM01107, MTMS05019)

Usage:
The Variofix block is used to fasten various surface elements. The Variofix block can be inserted into the profile groove at any point and is fixed securely in the groove by turning it 90°. Inside the component is a square steel nut into which a screw with an M6 thread can be screwed

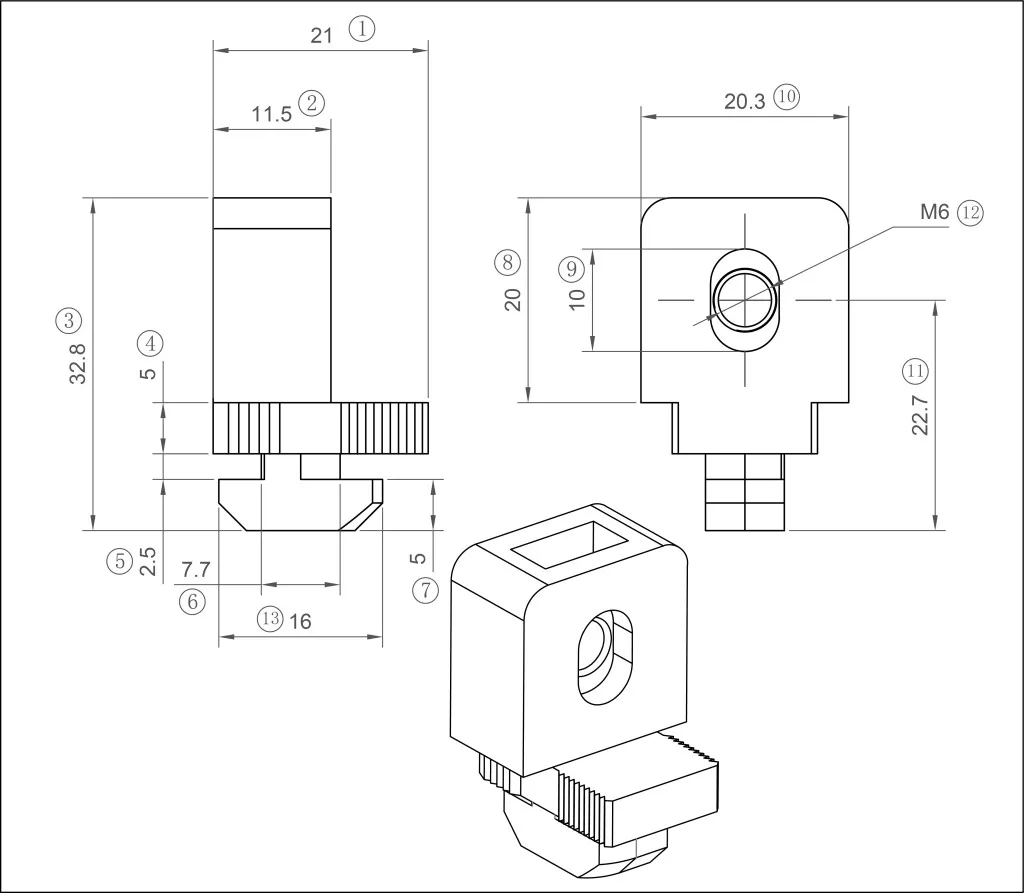

Assembly instruction:
