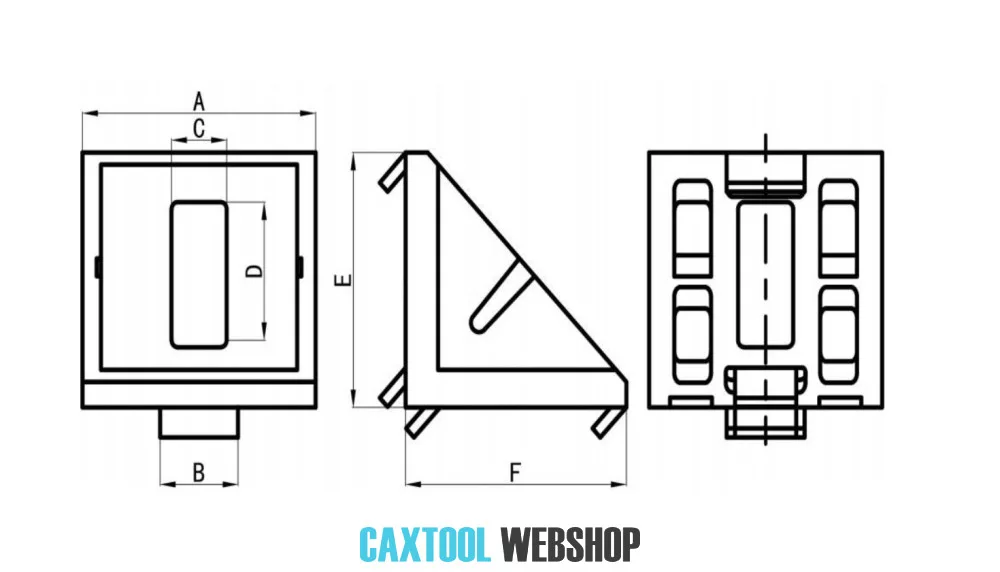

B10 corner bracket for 4040 aluminum profiles

Detaljer

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Aluminium alloy ADC12
Surface:	Plain
Mass (g):	31.7
References:	3842528967
Other names:	Bracket (standard) 40x40, Gusset 40X40
Profiles:	Can be used with the profiles B10 (MRAM01090, MTMS05020..)
Recommended accessories:	MRAM04521 nuts, MIDE04797 cover, MMEK05007 screws

Usage:
The gusset is used for the stable, unworking 90°connection of two profiles. You can be built with all profiles of the series 10 in grid 40

Assembly instruction:
Profile finishing not required. This corner bracket can be fitted using slide nuts, screws and hammer-head bolts. Our range includes screws and slide nuts made from stainless and galvanised steel, available in various head shapes.
