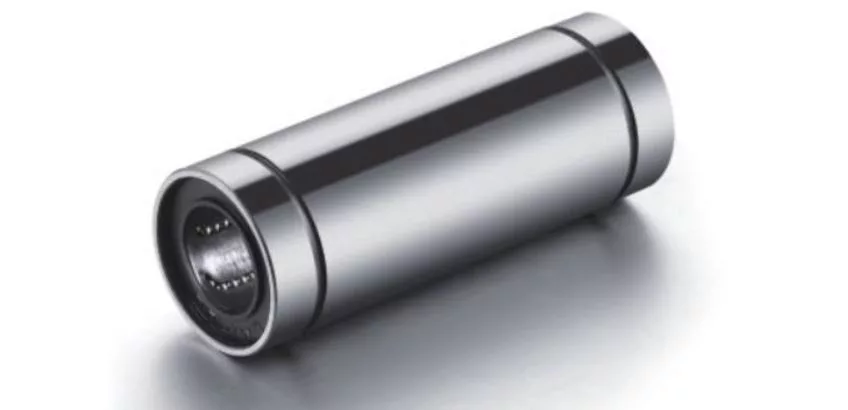

LM20LUU lengthened linear bearing
9,38 €
(7,50 € + 25% VAT)
LM20LUU lengthened linear bearing
9,38 €
(7,50 € + 25% VAT)
Article No.:
MBNS03109
Delivery time:
2-4 working days
Downloadable 3d model:
Type:
LM..LUU
Inner diameter:
20mm
Main stock
17 pcs
We deliver our products within 2-4 working days!
Detaljer
Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 020 mm
Inner diameter tolerance: 0 / -0.012 mm
D - Outer diameter: 032 mm
Outer diameter tolerance: 0 / -0.019 mm
L - Total length: 080 mm
Total length tolerance: 0 / -0.3 mm
W - Insertion width: 1.6 mm
B - Insertion distance: 57.8 mm
D1 - Insertion diameter: 30.5 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.02 mm
Number of rows of balls: 20 pcs
Application temperature: -20 / +80 ° C
Static load: 02740 N
Dynamic load: 01400 N
Weight: 0.18kg
