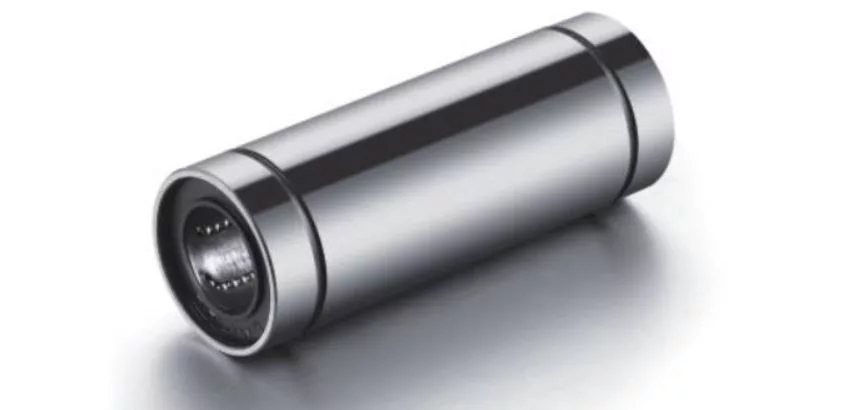

LM16LUU lengthened linear bearing
10,23 €
(8,19 € + 25% VAT)
LM16LUU lengthened linear bearing
10,23 €
(8,19 € + 25% VAT)
Article No.:
MBNS03108
Delivery time:
2-4 working days
Downloadable 3d model:
Type:
LM..LUU
Inner diameter:
16mm
Main stock
16 pcs
We deliver our products within 2-4 working days!
Detaljer
Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended

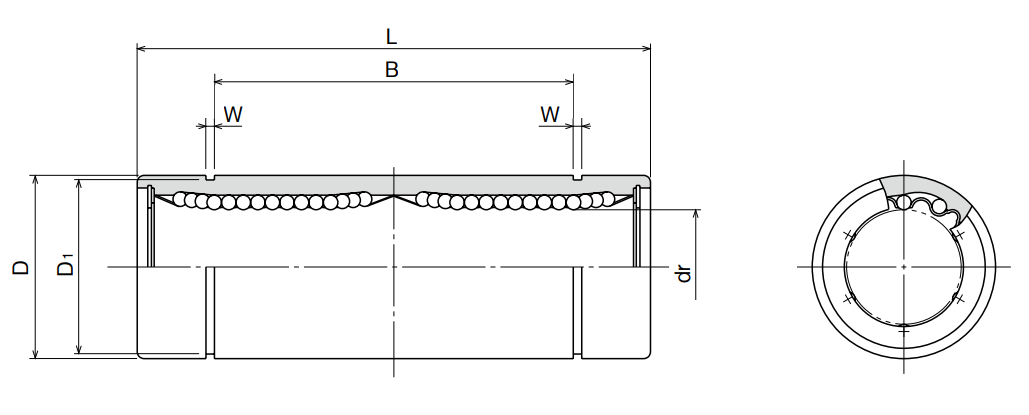

d - Inner diameter: 016 mm
Inner diameter tolerance: 0 / -0.01 mm
D - Outer diameter: 028 mm
Outer diameter tolerance: 0 / -0.016 mm
L - Total length: 070 mm
Total length tolerance: 0 / -0.3 mm
W - Insertion width: 1.6 mm
B - Insertion distance: 49.8 mm
D1 - Insertion diameter: 27 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 16 pcs
Application temperature: -20 / +80 ° C
Static load: 02350 N
Dynamic load: 01230 N
Weight: 0.145kg
