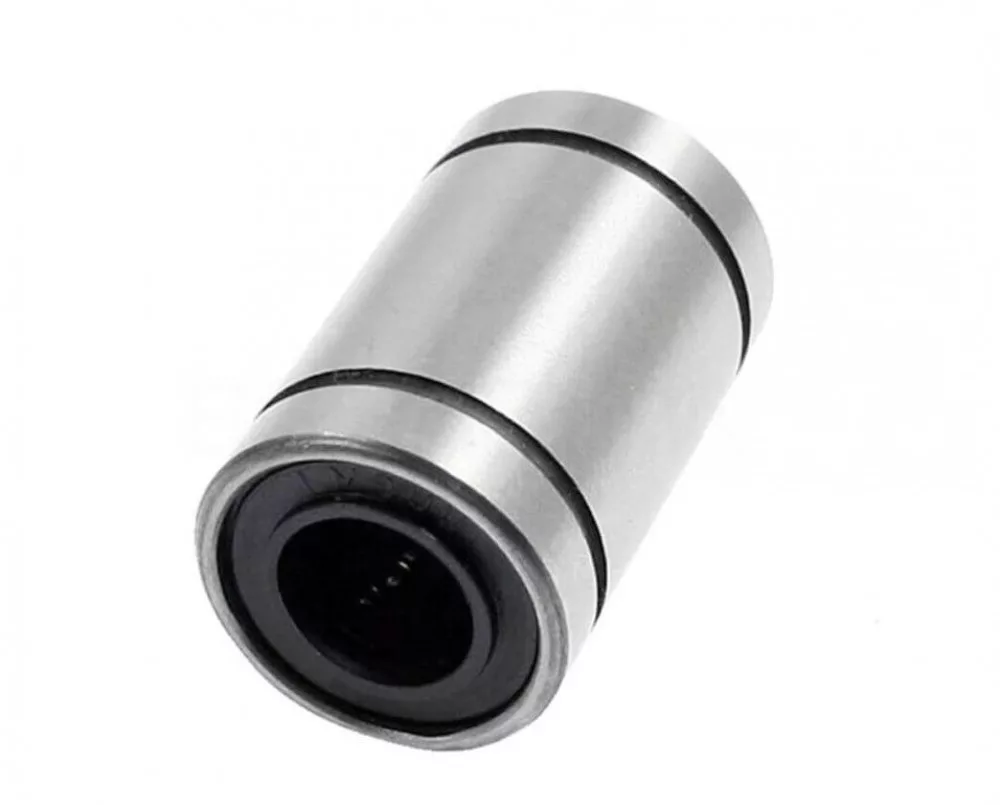

LM16UU linear bearing
3,61 €
(2,88 € + 25% VAT)
LM16UU linear bearing
3,61 €
(2,88 € + 25% VAT)
Article No.:
MBNS03101
Delivery time:
2-4 working days
Downloadable 3d model:
Type:
LM..UU
Inner diameter:
16mm
Main stock
17 pcs
We deliver our products within 2-4 working days!
Detaljer
Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 016 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 028 mm
Outer diameter tolerance: 0 / -0.013 mm
L - Total length: 037 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.6 mm
B - Insertion distance: 23.3 mm
D1 - Insertion diameter: 27 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 01180 N
Dynamic load: 00774 N
Weight: 0.069kg
