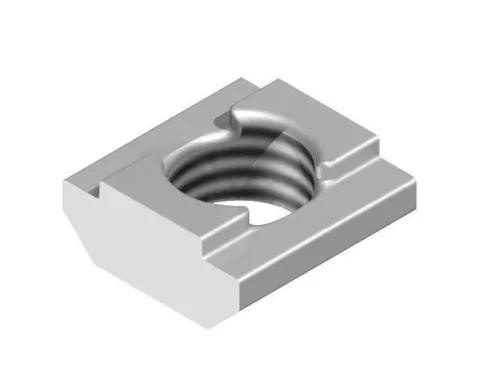

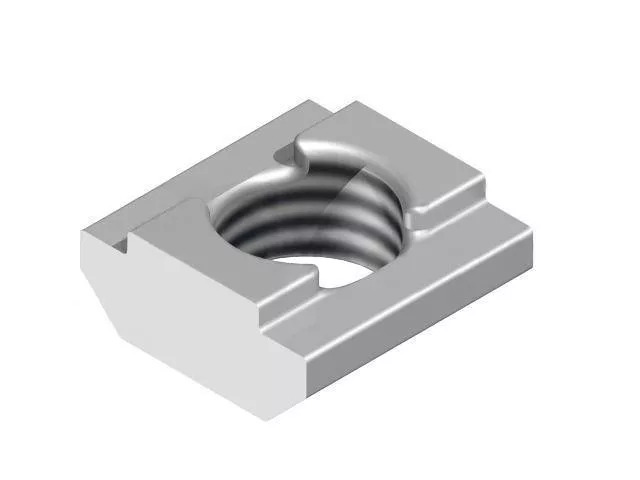

B6 Nutenstein 10x9,4x4,4 mm, M6 NUT 6
0,54 €
(0,45 € + 19% VAT)
B6 Nutenstein 10x9,4x4,4 mm, M6 NUT 6
0,54 €
(0,45 € + 19% VAT)
Artikel Nr.:
MRAM01103
Lieferfrist:
2-4 Arbeitstage

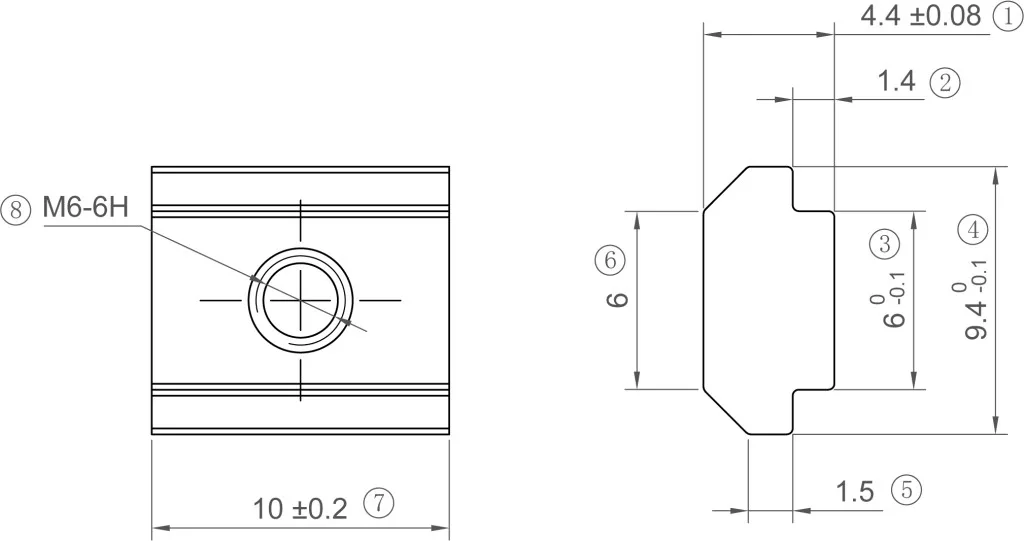

Technische Zeichnung:
Abmessungen des Profils:
20x20mm
Durchmesser des Gewindes:
M6
Größe der Rille:
6mm
Hauptbestand
2856 pcs
Wir liefern unsere Produkte innerhalb von 2-4 Werktagen!
Details
| Parameters | Values |
| Serie: | B6 and VSLOT (Bosch compatible, groove 6) |
| Material: | Carbon steel |
| Surface: | Zinc plated |
| Thread: | M6 |
| Mass (g): | 1,8 |
| References: | .. |
| Other names: | T-slot nut, Drop in T-nut, T-nut T-slot stone |
| Profiles: | Can be used with the profiles B6 and VSLOT (MRAM01091, MRAM01095, MTIR01881, MTIR01882, MTIR01883..) |
Usage:
A T-slot can be used individually for numerous fastening possibilities. You can it insert into the groove at the nad of bar. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

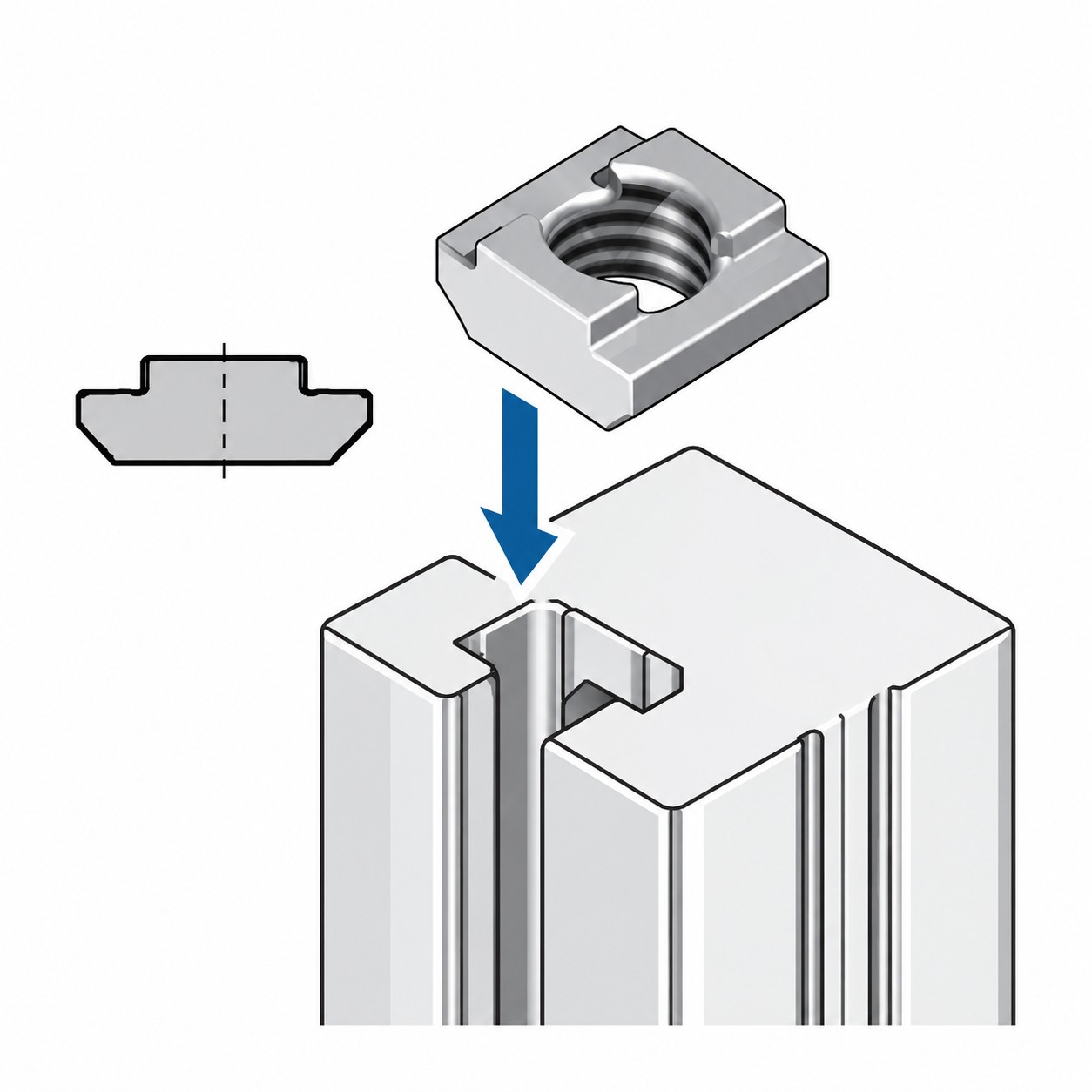

Assembly instruction:
This T-slot can be placed into the slot at the end of profile.
