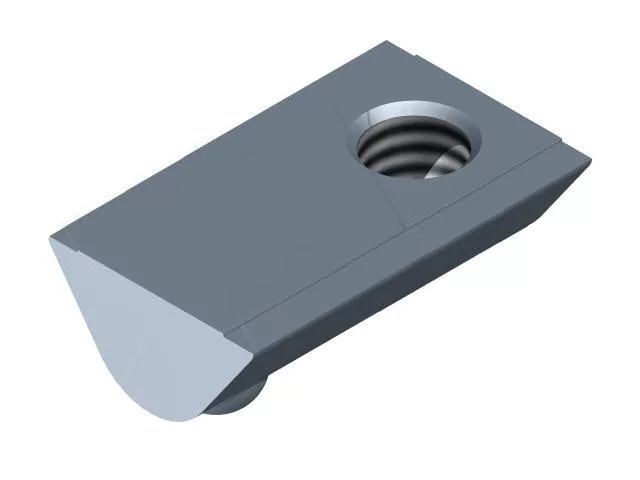

B6 Nutenstein 12x8x4,2 mm, M4 NUT 6
0,54 €
(0,46 € + 19% VAT)
B6 Nutenstein 12x8x4,2 mm, M4 NUT 6
0,54 €
(0,46 € + 19% VAT)
Artikel Nr.:
MRAM01100
Lieferfrist:
2-4 Arbeitstage

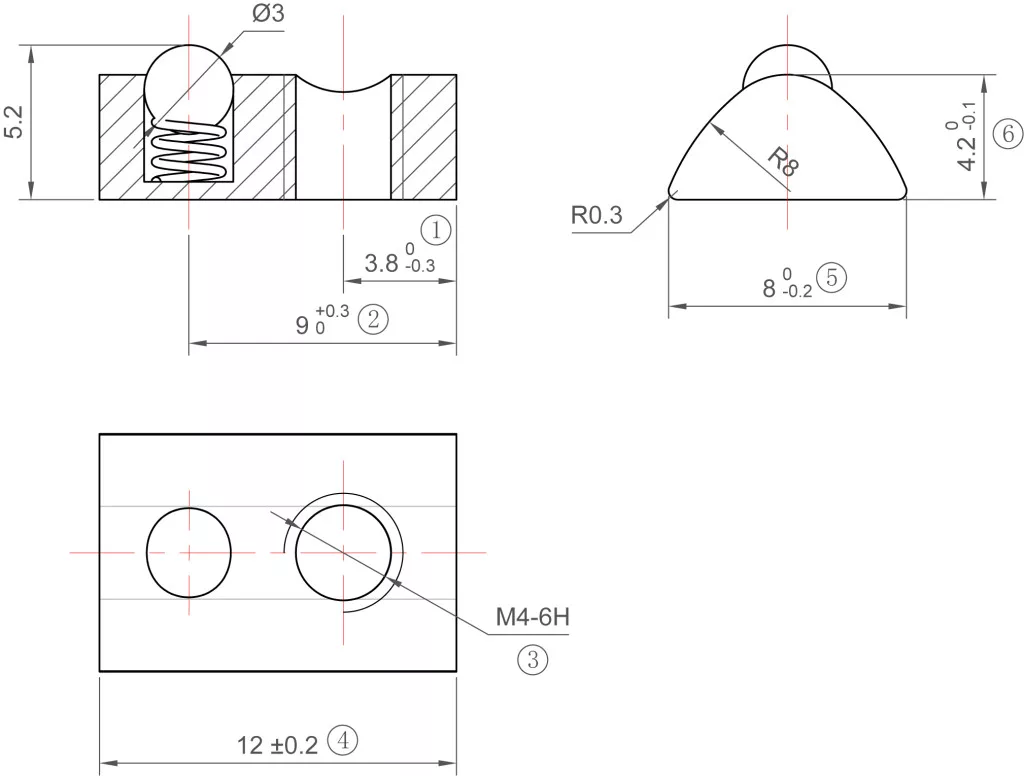

Technische Zeichnung:
Abmessungen des Profils:
20x20mm
Durchmesser des Gewindes:
M4
Größe der Rille:
5mm
Hauptbestand
2482 pcs
Wir liefern unsere Produkte innerhalb von 2-4 Werktagen!
Details
| Parameters | Values |
| Serie: | I5 and VSLOT (ITEM compatible, groove 6) |
| Material: | Carbon steel, Marbles 304 steel |
| Surface: | Zinc plated |
| Thread: | M4 |
| Mass (g): | 1,68 |
| References: | 0.0.419.46 |
| Other names: | T-slot nut, Roll in T-slot nut with spring loaded ball |
| Profiles: | Can be used with the profiles I5 and VSLOT (MRAM02076, MRAM01127, MTIR01881, MTIR01882, MTIR01883..) |
Usage:
A T-slot nut can be used individually for numerous fastening possibilities. The slide nut is inserted into the slot side of the face or twisted into the slot at any point. The spring-mounted ball pressure button locks the groove stone and ensures a quick assembly of attachments of any kind. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

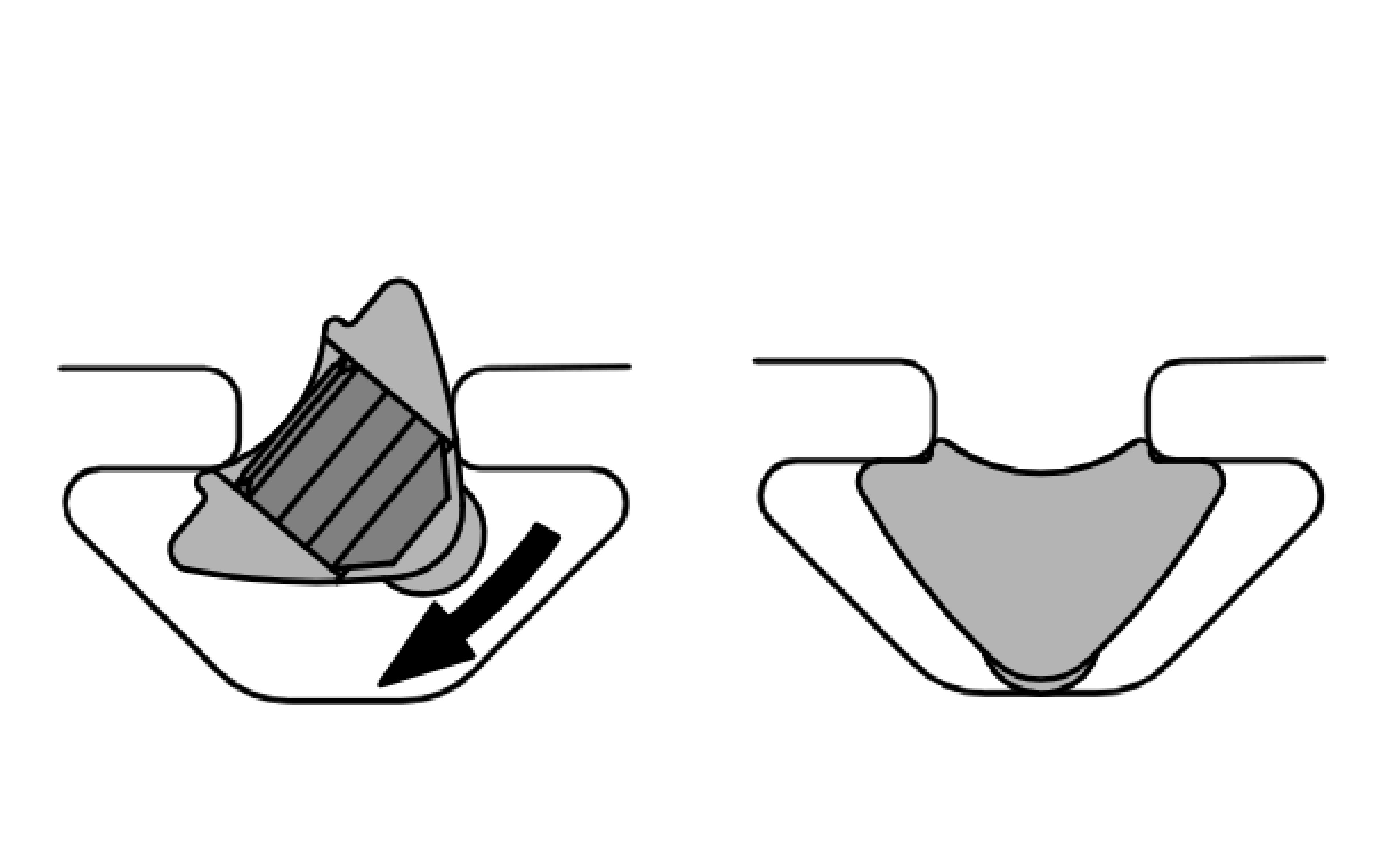

Assembly instruction:
This T-Slot nut can be twisted into place at any point along the Line 5 profile groove and is held in position by a spring-mounted piece.
