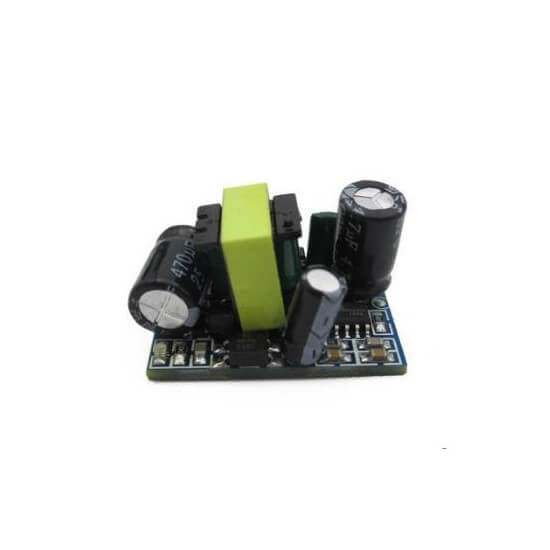

12V 450mA (5W) power supply module AC 220V to 12V

The power supply isolation type industrial grade power supply module, with temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85V-265V wide input voltage, AC DC dual-purpose, 431 Precision Voltage DC12V output, ultra small size, high reliability, price higher characteristics.

Specification:
Input voltage AC 85 ~ 50/60HZ 265V or DC100V-370V
Output voltage DC12V (+ 0.1V)
Output current 450mA
Power ratio 5W
Product sizeVolume: long and wide high 3*2*1.8 (CM)
4 installation method
A, the input and output pins mounted directly on PCB welding
B, glue fixed
5 input and output identification map
6 reliability requirements
Environment 25 degrees C, 80% load cases, the average time to failure is greater than 16000 hours
7 packaging, storage and transportation requirementsSingle board bubble bag packaging, batch carton packaging, stored in the air dry indoor environment, to avoid damp
